Product Details:
|
| Rated load (Kg): | 5000 | Operating Weight(kg): | 16500 |
|---|---|---|---|
| Max Breakout Force: | ≥175KN | Maximum Tractive Force: | 145KN |
| Maximum Grade Ability: | 30℃ | Maximum Dump Height: | 3142mm |
| Maximum Dump Reach: | 1250mm | Overall Dimension (L×W×H): | 8085×2965×3450mm |
| Minimum Turning Radius: | 6732mm | Engine Model: | Shangchai C6121 Engine |
| No. Of Cylinder-bore/stroke: | 6－121×152mm | Rated Power: | 162kw--2200r/min |
| Maximum Torque: | 843N.m | Min Fuel-consume Ratio: | ≤215g/kw.h |
| Gearbox Mode: | Power Shift Planetary Structure | Gear Shift: | 2 Forward Shift And1 Reverse Shift |
| Maximum Speed: | 38km/h | Fuel Tank Capacity: | 292L |
| Function Of Leveling Automatically: | Yes | Type Specification: | 23.5-25 |

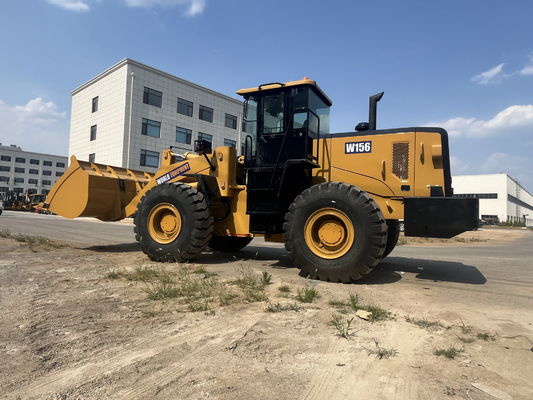

Big Front end payloader with Cummins or shangchai or weichai engien or ZF Transmission case for heavy working mine
Specificaiton:
| 性能Performance | 1 | 额定载重量rated load | 5000kg |
| 2 | 整机重量overall weight | 16500kg | |
| 3 | 额定斗容量rated bucket capacity | 3.0m3 | |
| 4 | 最大牵引力maximum tractive force | 145KN | |
| 5 | 最大崛起力maximum breakout force | ≥175KN | |
| 6 | 最大爬坡能力maximum grade ability | 30℃ | |
| 7 | 最大卸载高度maximum dump height | 3142mm | |
| 8 | 最大卸载距离maximum dump reach | 1250mm | |
| 9 | 整机外形尺寸overall dimension (L×W×H) | 8085×2965×3450mm | |
| 10 | 最小转弯半径minimum turning radius | 6732mm | |
| 发动机Engine | 11 | 型号model | Shangchai C6121 engine |
| 12 | 型式type |
直列水冷干缸套直喷 lnline water cooling dry cylinder injection |
|
| 13 | 气缸数-缸径×行程No. of cylinder-bore/stroke | 6－121×152mm | |
| 14 | 额定功率rated power | 162kw--2200r/min | |
| 15 | 最大扭矩maximum torque | 843N.m | |
| 16 | 最低燃油消耗率min fuel-consume ratio | ≤215g/kw.h | |
|
传动系统 Transmission system |
17 | 变矩器型式torque converter | 单级二相四元件Single stage two phase four components |
| 18 | 变速箱型式 gearbox mode | 动力换挡行星结构Power shift planetary structure | |
| 19 | 档位数gear shift |
前进档2个,倒退档1个 2 forward shift 1 reverse shift |
|
| 20 | 最高车速 maximum speed | 38km/h | |
| 驱动桥Drive axles | 21 |
主减型式:main reducing spiral
|
螺旋伞齿轮一级减速 bevel gear grade 1reduction |
| 22 | 轮边减速型式decelerating mode |
一级行星减速 planetary reduction,grade 1 |
|
| 23 | 轴距 wheel base (mm) | 3250mm | |
| 24 | 轮距 wheel tread(mm) | 2250mm | |
| 25 | 最小离地间隙minimum ground clearance | 450mm | |
|
液压系统 Hydraulic system |
26 | 系统工作压力system working pressure | 18MPa |
| 27 | 动臂提升时间 boom lifting time | 5.1s | |
| 28 | 三项和 total time | 9.3s | |
| 29 | 柴油箱容量 fuel tank capacity | 292L | |
| 30 |
铲斗自动放平功能 function of leveling automatically |
有 yes | |
|
制动系统 Brake system |
31 | 行车制动 service brake |
气顶油钳盘式四轮制动 air over hydraulic disc brake on 4 wheels |
| 32 | 驻车制动 parking brake | 断气刹式制动 Break air brake | |
|
轮胎 Tyre |
33 | 规格type specification | 23.5-25 |
| 34 | 前轮气压 Front wheel air pressure | 0.4Mpa | |
| 35 | 后轮气压 Rear wheel pressure |
0.35Mpa
|
1.A name-brand Engine, high power, low oil-consumption, low noise and reliable performance.
2.Double turbine hydraulic torque converter,planet power shifting transmission and higher transmission efficiency.
3.Reinforced axles by optimization of European technology has stronger bearing capacity, more stronger driving power and higher reliability
4.Rear frame with box structure, hinged panels with low stress and high strength steel——sturdy and durable；
5.Hydraulic parts and components such as cylinder, pump, valve all adapt domestic and international famous brands——stable and reliable.
