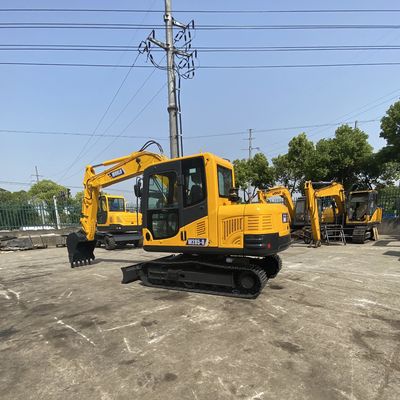

Yellow Mini Crawler Excavator Hydraulic Compact Excavator With Yanmar Engine
Basic Properties
Place of Origin:CHINA
Brand Name:WEA
Model Number:W285-8
Trading Properties
Minimum Order Quantity:1unit
Price:usd26500/unit-usd32500/unit
Standard Packaging:in container
Delivery Time:35 working days
Supply Ability:500 units per year
Specifications
| Operating Weight: | 8250kg | Moving Type: | Crawler Excavator |
|---|---|---|---|
| Maximum Digging Depth: | 4231mm | After-sales Service Provided: | Overseas Third-party Support Available |
| Condition: | New | Maximum Digging Height: | 7150mm |
| Bucket Capacity: | 0.36m3 | Warranty: | 1 Year Or 2000 Working Hours |
| Engine: | Yanmar (Japan) | Color: | Yellow |
| Origin: | China Mailand | Product Name: | Construction Machinery |
| Type: | Hydraulic Crwaler Excavator | ||
| Highlight | Yellow Mini Crawler Excavator,Yanmar Engine Hydraulic Compact Excavator,Yanmar Engine Mini Crawler Excavator |
||
Product Description
Product Description
Hydraulic Small Crawler Digger Earth-Moving Machinery Mini Excavator With Yanmar Engine
Product Specification
A mini excavator's ability to move into difficult areas of sites makes it the ideal machine for digging holes in, particularly
tough-to-reach spots. Using a mini excavator on smaller sites to dig holes can speed up projects, freeing up time to finish other important tasks. The compact nature of mini excavators compared to larger machines makes them much easier to work with on crowded sites.
Product Paremeters
| Items | Models | |||||
| W218 | W265-8 | W285-8 | ||||
| Engine System | ||||||
| Brand & Origin | Perkins (England) | Yanmar (Japan) | Yanmar (Japan) | |||
| Model | 403D-11 | 4TNV94L-SYU | 4TNV98T-SFN | |||
| Rated Power (kw/rpm) | 14.7/2200kw/rpm | 35.5/2200kw/rpm | 53.1/2200kw/rpm | |||
| Max. Torque (N.m) | 66.8/1900Nm/rpm | 214Nm/1000rpm | 287Nm/1500rpm | |||
| Idle Speed (rpm) | 1000rpm | 1100rpm | 1000rpm | |||
| Engine Displacement (L) | 1.131L | 3.054L | 3.319L | |||
| Cylinder No.-Bore x Stroke (mm) | 3-77mmx81mm | 4-94mmx110mm | 4-98mmx110mm | |||
| Engine Oil Capacity (L) | 3.4~4.4L | 6.7~12L | 5.3-12L | |||
| Fuel Tank Capacity (L) | 25L | 113L | 133L | |||
| Fuel Consumption Rate (g/kw.h) | 260g/kw.h or less | 235g/kw.h or less | 244g/kw.h or less | |||
| Hydraulic System | ||||||
| Main Pump | Brand & Origin | Nachi (Japan) | KYB (Japan) | Toshiba (Japan) | ||
| Rated Pressure (MPa) | 20MPa | 23.3MPa | 27.4MPa | |||
| Nominal Displacement (cm3/rev) | 19.8*2+14.3L/min | 59.2*2+42.2L/min | 99*2L/min | |||
| Multiple Unit Valve | Brand & Origin | Valvoil (Italy) | KYB (Japan) | Toshiba (Japan) | ||
| Rated Pressure (MPa) | 21.5MPa | 21.5MPa | 27.5MPa | |||
| Hydraulic Motor | Travel Motor Brand & Origin | Comer (Italy) | KYB (Japan) | Jesung (Korea) | ||
| Traveling Speed (H/L km/h)) | 4.5/2.5km/h | 4.0/2.2 km/h | 3.7/2.1 km/h | |||
| Swing Motor Brand & Origin | Nachi (Japan) | KYB (Japan) | Toshiba (Japan) | |||
| Swing Speed (r/min) | 10r/min | 10.5rpm | 11rpm | |||
| Hydraulic Cylinder | Boom Cylinder (mm) | 60mmx35mm | 110mmx65mm | 110mmx75mm | ||
| Arm Cylinder (mm) | 60mmx35mm | 85mmx55mm | 100mmx65mm | |||
| Bucket Cylinder (mm) | 60mmx35mm | 80mmx50mm | 90mmx55mm | |||
| Hydraulic Oil Tank Capacity (L) | 31L | 90L | 112L | |||
| Working Specifications | ||||||
| Weight (kg) | 1840kg | 5800kg | 8250kg | |||
| Bucket Capacity (m3) | 0.05 m3 | 0.21m3 | 0.36m3 | |||
| Bucket Width (mm) | 426mm | 674mm | 755mm | |||
| Bucket Digging Force (kN) | 14kN | 36.7kN | 63kN | |||
| Arm Digging Force (kN) | 9kN | 32.6kN | 50kN | |||
| Ground Pressure (KPa) | 28.3KPa | 32KPa | 37KPa | |||
| Grade ability | 30° | 35° | 35° | |||
| Max. Digging Depth (mm) | 2116mm | 3778mm | 4231mm | |||
| Max. Digging Height (mm) | 3406mm | 5641mm | 7150mm | |||
| Max. Digging Radius (mm) | 3705mm | 6143mm | 6793mm | |||
| Max. Discharging Height (mm) | 2265mm | 3929mm | 5072mm | |||
| Min. Ground Clearance (mm) | 153mm | 377mm | 367mm | |||
| Min. Swing Radius (mm) | 1225mm | 1645mm | 1791mm | |||
| Overall Dimensions (mm) | 3825mmx1100mmx2240mm | 5963mmx1920mmx2583mm | 6502mmx2320mmx2601mm | |||
Product Photos
Packing & Delivery
Successful Project
Project in Philippine
Project in Indonesia
Project in Ecuador
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2009,sell to Southeast Asia(40.00%),South America(20.00%),Africa(15.00%),Mid East(15.00%),Domestic Market(10.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Excavators, wheel loaders, road rollers, most construction machinery and spare parts
4. why should you buy from us not from other suppliers?
1. CUSTOEMRS ALWAYS COME FIRST !
We are based in Jiangsu, China, start from 2009,sell to Southeast Asia(40.00%),South America(20.00%),Africa(15.00%),Mid East(15.00%),Domestic Market(10.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Excavators, wheel loaders, road rollers, most construction machinery and spare parts
4. why should you buy from us not from other suppliers?
1. CUSTOEMRS ALWAYS COME FIRST !
2. 9 YEARS PROFESSIONAL EXPERIENCE IN CONSTRUCTION MACHINEY
3. OUR TEAM FOCUS ON SERVING CUSTOMERS AND EXPERT IN PRODUCTS
4. HAVE OUR OWN WORKSHOP AND WAREHOUSE
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,French
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,French
