Product Details:
|
| Maximum Vertical Digging Depth: | 2160mm | Maximum Digging Depth: | 2450mm |
|---|---|---|---|
| Maximum Digging Height: | 3700mm | Emission Standard: | Tier 3/ Stage III |
| Bucket Capacity: | 0.1m³ | Machine Weight: | 2200kg |
| Maximum Bucket Digging Force: | 15.3KN | Maximum Lifting Height Of Blade: | 240mm |
| High Light: | Tier3 Mini Crawler Excavator,10.5KN Mini Crawler Excavator,Crawler Mini Digger Excavator |
||

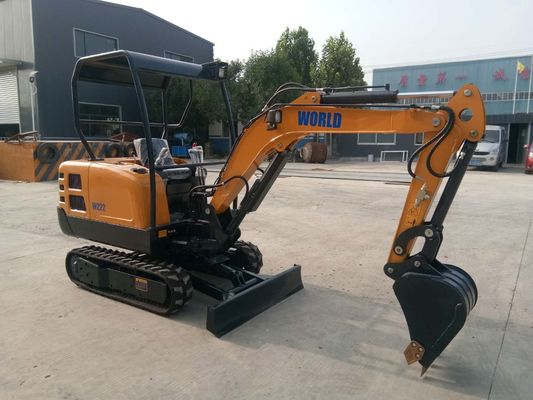

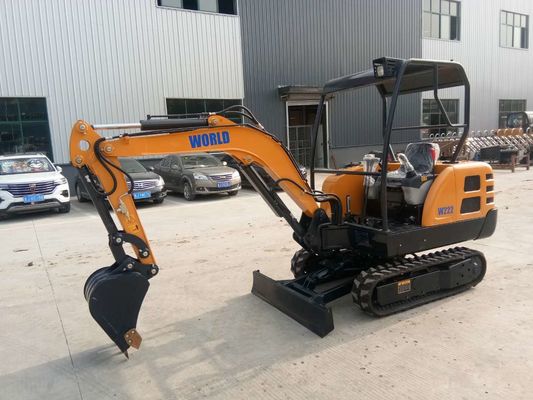

Mini Crawler Excavator is a small and compact crawler backhoe that offers superior performance. It is powered by a 22.1kw (30HP)@2300rpm engine and has a machine weight of 2200kg. It is designed to maximize lifting height of blade up to 240mm and its hydraulic system pressure is 18Mpa. Moreover, it has a 0.1m³ bucket capacity which allows it to tackle a variety of tasks with great efficiency. Due to its small size and compact design, this mini crawler backhoe is ideal for a wide range of applications in confined spaces. This excavator is designed for maximum efficiency, durability and safety. It is the perfect choice for contractors who need a reliable and efficient machine for their projects.
| Parameter | Data |
|---|---|
| Minimum Ground clearance | 230mm |
| Swing radius at tail | 1180mm |
| Machine weight | 2200kg |
| Engine Power | 22.1kw(30HP)@2300rpm |
| Maximum Vertical digging depth | 2160mm |
| Maximum Dumping height | 2290mm |
| Maximum Lifting height of blade | 240mm |
| Hydraulic system pressure | 18Mpa |
| Emission Standard | Tier 3/ Stage III |
| Maximum Cutting depth of blade | 310mm |
Mini Crawler Digger, also known as the Compact Crawler Digger, is a Compact Excavation Machine from WORLD with model number W222 originating from China. The minimum order quantity is 1 unit, with the price ranging from $3500 to $11000. It is usually delivered nude in 25 days, and payment can be made through T/T or LC. WORLD provides a supply ability of 1500 units/month. Its swing radius at tail is 1180mm, with a hydraulic system pressure of 18Mpa. The bucket capacity is 0.1m³, with an overall dimension (L*W*H) of 4170mm*1300mm*2280mm, and a maximum cutting depth of blade of 310mm.
WORLD W222 Compact Excavation Machine is designed for the toughest jobs in a variety of construction and landscaping applications. Offering a minimum ground clearance of 230mm and a minimum swing radius of 2020mm, this compact crawler excavator is powerful and efficient. It's equipped with a 22.1kw(30HP)@2300rpm engine, meeting Tier 3/ Stage III emission standards, and has a machine weight of 2200kg.
For more information on the WORLD W222 Mini Crawler Backhoe, please contact us today.
Mini Crawler Excavator offers technical support and service to ensure that the product operates properly and efficiently. Our technical support team is available to help you troubleshoot and resolve any issues that may arise. We have experienced technicians who are familiar with the product and can help you with any questions or problems you may have. In addition, we provide regular maintenance checks and can provide spare parts if needed. Our service team is also available to provide on-site support for repairs or other necessary services. If you have any questions or concerns, please do not hesitate to contact us.
To ensure the safe transport of your Mini Crawler Excavator, we use a variety of packaging and shipping methods depending on the size and type of product.
For smaller, lightweight machines, we use specialized boxes and pallets to protect the machine during shipping. The boxes are made of corrugated cardboard and lined with thick padding to protect against shock and vibration. The pallets are chosen for their strength and durability, and the entire package is secured with heavy-duty strapping to prevent shifting during transit.
For larger, heavier machines, we use wooden crates to protect the machine during shipping. The crates are designed with extra strong walls and are lined with thick padding to protect the machine from shock and vibration. The entire package is secured with heavy-duty strapping to prevent shifting during transit.
All Mini Crawler Excavators are shipped via insured and tracked freight carriers to ensure they arrive safely and on time. We also offer international shipping for customers outside the United States.
A1: The brand name of the Mini Crawler Excavator is WORLD.
A2: The model number of the Mini Crawler Excavator is W222.
A3: The Mini Crawler Excavator is made in China.
A4: The minimum order quantity of the Mini Crawler Excavator is 1.
A5: The price range of the Mini Crawler Excavator is from $3500 to $11000.
