China Real Manufacturer 2.5T Telescopic Forklift

Quality China Real Manufacturer 2.5T Telescopic Forklift factory
Quality China Real Manufacturer 2.5T Telescopic Forklift factory
Quality China Real Manufacturer 2.5T Telescopic Forklift factory
Quality China Real Manufacturer 2.5T Telescopic Forklift factory
Quality China Real Manufacturer 2.5T Telescopic Forklift factory
Quality China Real Manufacturer 2.5T Telescopic Forklift factory

Basic Properties

Place of Origin:China
Brand Name:WORLD
Certification:Provided
Model Number:WEA25-4

Trading Properties

Minimum Order Quantity:1set
Price:10000-90000
Standard Packaging:nude
Delivery Time:20-25 days
Payment Terms:L/C, D/A, D/P, T/T, Western Union,
Supply Ability:100set/month
Specifications
Capacity: 2-3 Tons Color: Customized
Controls: Joystick Dimensions: 5730*2390*2485mm
Drive Type: 4 Wheel Drive Fork Length: 5730mm
Power Source: Electric Or Diesel Product Name: Telescopic Handler Forklift
Safety Features: Seatbelt, Overload Protection, Emergency Stop Steering Type: Power Steering
Tilt Type: Hydraulic Tire Type: Pneumatic
Weight: 8200kg
Highlight

Real Manufacturer Telescopic Forklift

,

China Telescopic Forklift

,

2.5T Telescopic Forklift
Product Description

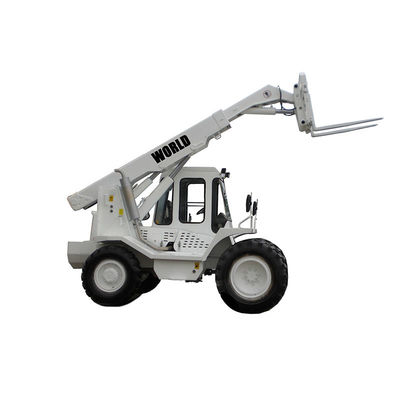

                                                       WEA25-4 Telescopic Forklift



1.comes with four-wheel drive and rigid suspension.

2. hydraulic mechanical drive, hydraulic power steering

  and hydraulic brake, rear-wheel steering.

3.the two-stage quadrilateral telescopic boom serves as

the working unit. A regular lift truck is equipped with

hook,a fork or a boom.

4.the lift truck is applicable to the unstuffing and casing

of pellatized goods in containers,as well as handling,

stacking and short-distance transportation of a variety

of packaged goods.

5.suitable for many different working environments, is

ideal equipment for loading and unloading, lifting, and
transportation in mining, factory, architecture,building
material,dock, municipal engineering industries.
6.a range of options including such accessories as the
bucket, lifting hook, and boom, etc.are available to
customers.
7.offers better performance than a general fork truck in
terms of the handling height and cross-country ability.





China Real Manufacturer 2.5T Telescopic Forklift

China Real Manufacturer 2.5T Telescopic Forklift

China Real Manufacturer 2.5T Telescopic Forklift

Product Specification

Item
Specification
WEA25-4
WEA30-4
1
Rated load
2500 kg
3000kg
2
Operating weight
8200 kg
8600kg
3
Max. Lifting height
7000 mm
7000mm
4
Load capacity @ max. Forward reach
1000 kg
1250 kg
5
Max Out-Reach distance
3350mm
3350mm
6
Max. Loading Capacity(Max Out-Reach)
1300 kg
1400 kg
7
Load center
500 mm
500 mm
8
Max.driving force
≥50 kN
≥50 kN
9
Braking distance
≤12.5 m
≤12.5 m
10
Min. Ground clearance
400mm
400mm
11
Wheel Base
2700 mm
2700 mm
12
Tread
1870 mm
1870 mm
13
Min. Turning radius outer tire center
≤6200 mm
≤6200 mm


14
The second Boom reach time
≤12.05/10s
≤12.05/10s
The second Boom get back time
≤6.02/5.5s
≤6.02/5.5s
Lifting time
≤25.2/22.5s
≤25.2/22.5s
Descending time
≤15.2/14 s
≤15.2/14 s
15
Telescopic Boom Changing angle range
-11°～60°
-11°～60°
16
Travelling speed (unloaded)
30km/h
30km/h
17
Engine Model
4DK100-T304
4DK100-T304
18
Engine Rated power
74 KW
74 KW
19
Engine Rated Speed
2200r/min
2200r/min
20
Tire
Front 16/70-24 Rear 10.00/20-16
Front16/70-24 Rear10.00/20-16
21
Overall dimension (without fork)
5730*2390*2485 mm
5730*2390*2485 mm
