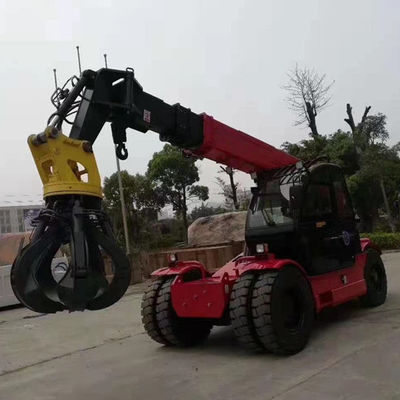

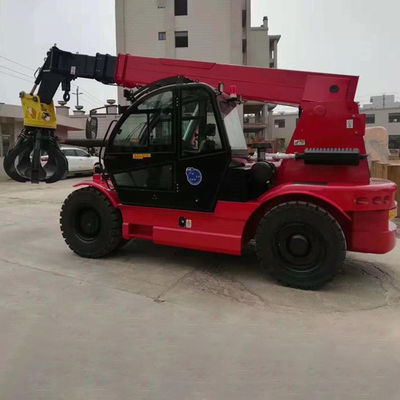

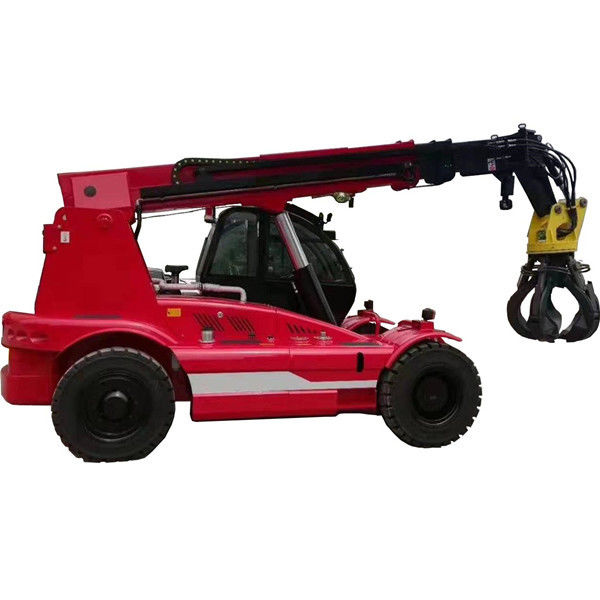

10ton Telescopic Crane Loader Mini Front Wheel Drive Low Noise

10ton Telescopic Crane Loader Mini Front Wheel Drive Low Noise
10ton Telescopic Crane Loader Mini Front Wheel Drive Low Noise 10ton Telescopic Crane Loader Mini Front Wheel Drive Low Noise 10ton Telescopic Crane Loader Mini Front Wheel Drive Low Noise

Large Image :  10ton Telescopic Crane Loader Mini Front Wheel Drive Low Noise

Product Details:
Place of Origin: China
Brand Name: World Equipment
Model Number: WEA110
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10000-50000
Packaging Details: in nude
Delivery Time: 5-8Work days
Payment Terms: L/C, T/T
Supply Ability: 10 units per45days

10ton Telescopic Crane Loader Mini Front Wheel Drive Low Noise

Product Name: Telescopic Handler Forklift Rated Load: 5000KG
Max.Lifting Height: 7000mm Engine: Dongfeng Cummins
Advantage: Versatility, Stability, Maneuverability Color: Customsized
High Light:

Telescopic Crane Loader Mini


Low Noise Telescopic Crane Loader

10Ton Telescopic Crane Loader Hydraulic Telehandler Mini Telescopic With Claw CE Good Price WEA110


1. telescopic Crane Loader WEA110,the chassis is front-wheel drive,rear-wheel steering, rigid suspension;adopt hydro-mechanical transmission with two-speed forward and two-speed reverse.full hydraulic power steening,and air-over-oll type drum brake; the working device is composed of the three-stage quadrilateral telescopic boom and boom quick change device and hook.This telescopic crane loader is not only applicable to lift the stone slabs in containers,but also can be used as a general crane, can be widely uused in factory,dock,freight yard,forest farm,construction material,ware-house,logistics and other industries.It is a loading and unloading machine with wide adaptability and high efficiency.

2. Using well-known brand diesel engine, strong-power, energy saving and environment protection,to meet the requirements of efficient operations

3. Double turbo hydraulic torque converter,stepless speed change. Single-lever control transmission system,with 2 speeds for forward and reverse gears, easier to operate.

4. Use dual-pump combined hydraulic system, greatly reduce the fuel consumption and energy consumption

5. With full hydraulic coaxial flow amplification steer-ing system,turning radius for rear steering axle is small, steering light and flexible

6. Using front wheel drive,rigid suspention,rear axle steering structure, can achieve four-wheel drive.Front axle spiral bevel gear and wheel side planetary wheel to reduce the speed and increase torque,have excellent load capacity

7. Using the integral frame,can provide good rigidity and strength, to ensure high reliability of this type of chassis.

8. Working device is two stage quadrilateral telescopic working arm, telescopic arm use large cross-section,high-strength quadrilateral structure.

9. This model standard with forks,bucket,extension forks and aerial work platform are optional. Standard with quick hitch, can choose fork positional and side-shifter.

10. The use of adjustable direction machine, air seat, joystick control valve control distribution valve and work device oil,light and flexible operation,sitting more com-fortable.

11. Using maintenance-free battery,cab match with fan,radio,air conditioning,more comfortable and reliable.

12. The whole shape of the atmosphere,beautiful and smooth; luxury wide view cabin low noise and good sealing.

13. This series models standard with electronic hand-brake, compared to the soft-axis handbrake, have a substantial increase in the operability,asthetics and sensi-tivity.

14. This series models standard with electronic off-axle function, compared to the manual soft shaft off-bridge mechanism,the operation is more convenient and concise, the performance also been greatly improved,can achieve two-wheel drive and four-wheel drive switch, can better adapt to different working condi-tions and reduce the degree of tire wear, protect the tiers better.

15. Parts are the ocalization,standardization,cost-effective,easy to purchzase and daily maintenance.

WEA-110 Telescopic Crane loader
Rated load, ≤11000kg
Operating weight 13000kg
Main hook max.lifting height, 7605mm ( from
main hook to the
Max.lifting height with full extended
10300mm (front hook)
Wheel base, 2988mm
Front wheel tread, 1638mm
Rear wheel tread, 1845mm
Min.ground clearance, 310mm
Overall length, 5288mm without hook
Overall width, 2350mm
Overall height, 2715mm
Overall height of cab, 2400mm
Rear overhang length, 1055mm
Main hook max,horizontalreach, 4800mm (Horizontal)
Max.Horizontal reach with full extended boom,mm 7900mm (Horizontal)
Tipping angle of hook,up/down 22°/24°
Tipping angle of big arm,up/down -14°/43°
Min.turning radius, 6800mm
Max.gradeabilliy, ≥20°
Max.travelling speed, 25Km/h
Front wheel 11.00-20
Rear wheel 9.00-20
