Product Details:
|
| Machine Weight: | 12000KG | Moving Type: | Wheel Crawler Excavator |
|---|---|---|---|
| Bucket Capacity: | 0.4m3 | After-sales Service Provided: | Overseas Third-party Support Available |
| Condition: | New | Warranty: | 1 Year Or 2000 Working Hours |
| Engine: | Yanmar | Color: | Yellow |
| Origin: | China Mailand | Product Name: | Construction Machinery |
| Type: | Wheel Crwaler Excavator | ||
| Highlight: | Wheel Crawler Excavator 9 Ton,9 Ton Hydraulic Compact Excavator,Yellow Hydraulic Compact Excavator |
||
3.The key parts are all processed by non-destructive testing to ensure the strength and stiffness of the structural parts; the structural parts of the whole vehicle are treated by shot blasting to eliminate the stress, increase the adhesion of the paint, delay the corrosion of the parts and improve the life of the parts.
| (Model) | X120 | |
| (Operating Weight) | 12 t | |
| (Overall dimension) | 6570x2120x2982 mm | |
| (Bucket capacity) | 0.4 | |
|

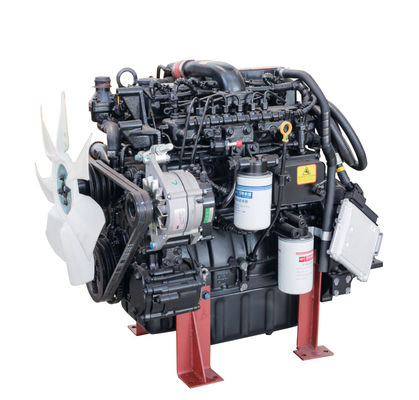

Engine |
(Engine type) | YC4DK100-T301 |
| (Rated power/speed) | 73.5KW | |
| (No. of cylinders/type) | 4 cylinders in line | |
| (Bore and stroke) | 94*105 | |
| (Voltage of start motor) | 12V | |
| (Starting type) | ELECTRIC | |
|
Hydraulic system
|
(Hydraulic system pressure) | 30MPa |
| (Hydraulic system flow) | 250L/Min | |
| (Gear) | Forward 1 2 3 4 ; Reverse 1 2 | |
| (Hydraulic system pressure) | 30MPa | |
|
Machine specification |
(Bucket Digging Force) | 81Kn |
| (Arm Digging Force) | 65Kn | |
| (Grade ability) | 35 degree | |
| (Max Digging Height) | 8122mm | |
| (Max Dumping Height) | 6042mm | |
| (Max Digging Depth) | 4840mm | |
| (Max Digging Radius) | 7680mm | |
