Product Details:
|
| Condition: | New | Engine: | Cummins/Weichai |
|---|---|---|---|
| Engine Model: | 6BT5.9/WP6G125E22 | Type: | Direct Injection, Turbocharged, Water Cooling |
| Rated Power: | 97/92kW | Rated Speed: | 2200rpm |
| Operating Weight: | 10200kg | Rated Bucket Capacity: | 1.8m3/2.2m3 |
| High Light: | Cummins Engine Front End Shovel Loader,Turbocharged Compact Wheel Loader,Turbocharged Front End Shovel Loader |
||
MAIN FEATURES

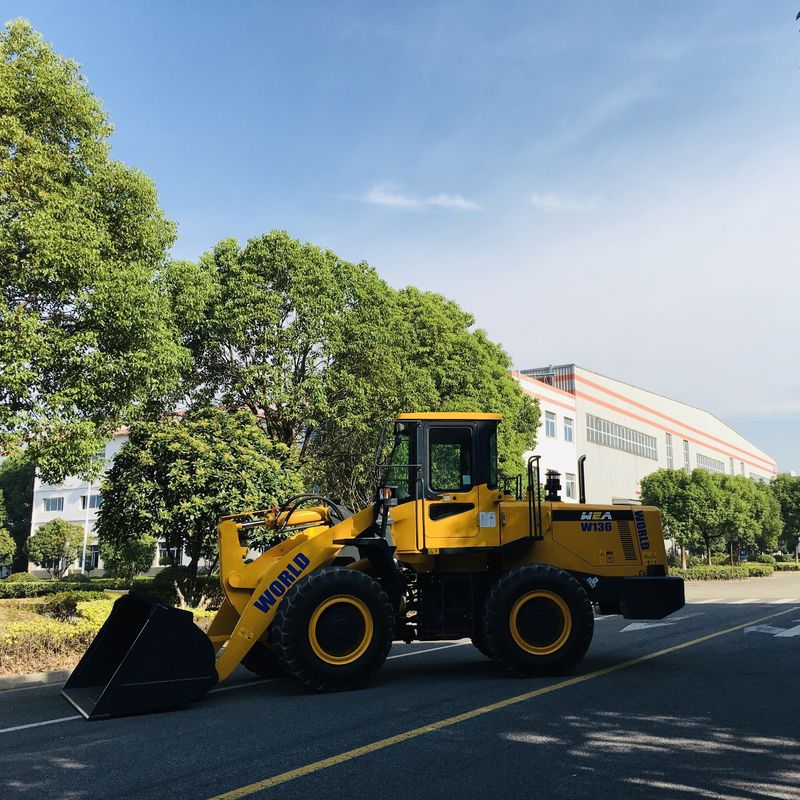

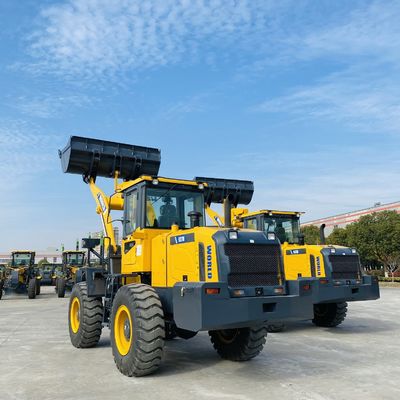

1. World brand W136 compact wheel loader is a most popular 3 ton wheel loader in Chinese market.
2. World began to produce wheel loaders since 2006.
3. W136 wheel loader has very good performance and reliability after 10 years experience.
4. Now this model is exporting to South America, South east Asia, North Africa, Middle east markets.
And we also export some to USA and European markets.
5. This model can compare to caterpilar 938g loader with more competitive price.
| Operating weight | 10200kg | System pressure | 16MPa |
| Rated Bucket Capacity | 1.8m3/2.2m3 | Flow rate at engine rated speed | 220L/min |
| Max. breakout force | 96kN | Lifting cylinder | 2-125x697mm |
| Dumping clearance | 2934mm | Tilting cylinder | 1-150x434mm |
| Dumping reach | 1043mm | Lifting time | 5.2s |
| Tipping load full turn | 5880kg | Lowering time | 3.0s |
| Max. drawing force | 96kN | Dumping time | 1.1s |
| Gear ratio of main drive | 4.222 | Traveling speed | I II III IV |
| Gear ratio of hub reduction | 4.8 | Forward | 7.8 14.7 23.5 41.2 |
| Max. gradient ability | 30° | Reverse | 10.8 31.6 |
| 31.6Streering angle | ±38° | Fuel tank | 130L |
| Min. steering radius | 4885mm | T/C and T/M | 38L |
| System pressure | 16MPa | Hydraulic tank | 120L |
| Flow rate at engine rated speed | 100ml/min | F/R axles | 15L/15L |
| No, of cylinders-BorexStroke | 2-70x357mm | Tyre size | 17.5-25-12PR |
PRODUCT DETAILS
