Product Details:
|
| Condition: | New | Power: | 45kw |
|---|---|---|---|
| Production Capacity: | 0.3M3/m | Dimension(L*W*H): | 3840*1820*2080 |
| Voltage: | 220V | After-sales Service Provided: | Free Spare Parts |
| UNIQUE SELLING POINT: | Short Turning Radius | Hydraulic Cylinder Brand: | Huade |
| Hydraulic Valve Brand: | Eaton | Hydraulic Pump Brand: | Parker |
| High Light: | Customization Small Skid Steer Loader,Diesel Small Skid Steer Loader |
||
Main features

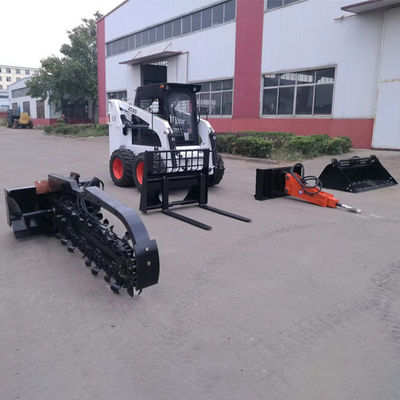

Skid steer loader is one of the most popular mini construction machinery in the world. Relying on its flexible steer, compact body and replaceable mulitifunctional tools, it can finish all kinds of comprehensive construction demand easily. The apperance, heightlifting, weightlifting and driving comfort are all the top-notch loader in the world.
Always supply the high quality machine and Variously styles can meet the customers’ all kinds of request! Accept Customization!!!OEM/Color and so on.
The Price Is The Pre-Sale Price Of The Machine.
Product Paremeters
| Model | JC45L | JC60L | JC65B | JC75(B/C) | JC100(B/C) | JC120B |
| Model | JC45 | JC60 | JC65 | JC75 | JC100 | JC120 |
| Overall operating height (mm) | 3670 | 3690 | 4000 | 4070 | 4070 | 4070 |
| Height to bucket hinge pin (mm) | 2900 | 2920 | 3100 | 3150 | 3150 | 3150 |
| height to top of cab (mm) | 2030 | 2050 | 2160 | 2160 | 2160 | 2160 |
| Height to bottom of level bucket(mm) | 2733 | 2753 | 2933 | 2983 | 2983 | 2983 |
| Overall length ithout bucket(mm) | 2450 | 2630 | 2750 | 2880 | 2880 | 2880 |
| overall length with bucket(mm) | 3200 | 3380 | 3490 | 3580 | 3580 | 3580 |
| Dumping angle at maximum height(° ) | 40 | 40 | 40 | 40 | 40 | 40 |
| Dumping height(mm) | 2380 | 2400 | 2400 | 2450 | 2450 | 2450 |
| Dumping reach(mm) | 700 | 750 | 750 | 700 | 700 | 700 |
| Rollback o bucket on ground(° ) | 30 | 30 | 30 | 30 | 30 | 30 |
| Rollback of bucket at full height(° ) | 104 | 104 | 104 | 104 | 104 | 104 |
| Wheelbase(mm) | 991 | 991 | 1085 | 1115 | 1185 | 1185 |
| Ground clearance(mm) | 185 | 205 | 205 | 205 | 205 | 205 |
| Angleof departure(° ) | 20 | 20 | 20 | 20 | 20 | 20 |
| Front turning radins without bucket(mm) | 1168 | 1198 | 1204 | 1250 | 1278 | 1278 |
| Front tuning radius(mm) | 1958 | 1958 | 2030 | 2112 | 2144 | 2144 |
| Rear tuning radius(mm) | 1630 | 1728 | 1706 | 1774 | 1857 | 1857 |
| Rear axle to bumper (mm) | 1108 | 1208 | 1082 | 1082 | 1082 | 1082 |
| Tread width,enterline to centerline (mm) | 1450 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Width (mm) | 1720 | 1800 | 1880 | 1880 | 1880 | 1880 |
| Bucket width (mm) | 1740 | 1820 | 1880 | 1880 | 1880 | 1880 |
| Operating load (kg) | 700 | 850 | 950 | 1050 | 1200 | 1500 |
| Max Speed(km/h) | 12 | 12 | 12 | 12 | 12/18 | 12/18 |
| Rated flux (L/min) | 62.5 | 75 | 80 | 80 | 80 | 80 |
| Tire(track) model | 10-16.5 | 12-16.5 | 12-16.5 | 12-16.5 | 12-16.5 | 12-16.5 |
| Rated power (Kw) | 37 | 45 | 55 | 55 | 74 | 103 |
| Fuel tank capacity (L) | 60 | 60 | 75 | 75 | 90 | 90 |
| self weight bucket (kg) | 2600 | 3000 | 3350 | 3500 | 3550 | 3600 |
| Bucket capacity (m 3 ) | 0.4 | 0.45 | 0.5 | 0.5 | 0.55 | 0.55 |
