Product Details:
|
| Condition: | New | Power: | 45kw |
|---|---|---|---|
| Production Capacity: | 0.3M3/m | Dimension(L*W*H): | 3840*1820*2080 |
| Voltage: | 220V | After-sales Service Provided: | Free Spare Parts |
| UNIQUE SELLING POINT: | Short Turning Radius | Hydraulic Cylinder Brand: | Huade |
| Hydraulic Valve Brand: | Eaton | Hydraulic Pump Brand: | Parker |
| High Light: | Automatic Small Skid Steer Loader,Bucket Small Skid Steer Loader,Automatic Skid Steer Loader |
||
Main features
1. Bucket automatic leveling
2. The whole series comes standard with three pumps and three valves

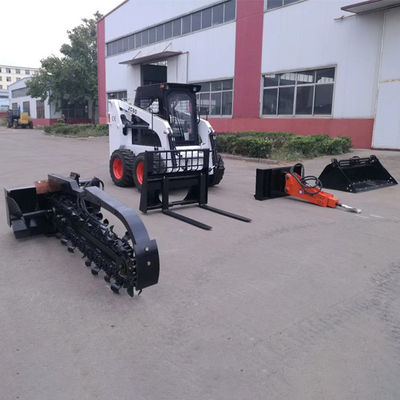

3. Attachment interface, international standard quick-change plug
4. The attachment has a large flow rate, up to 55 liters per minute, basically any attachment
needs the flow rate can be satisfied
5. Wheeled and tracked models can be switched back and forth
6. Anti-skid design of rear standing pedal, with shock absorption buffer
7. Optional, mount counterweight 35KG*2
8. Full-time four-wheel drive, four high-torque motors drive one car
9. Hydraulic oil temperature sensor controls heat dissipation
Product Paremeters
| Model | JC45L | JC60L | JC65B | JC75(B/C) | JC100(B/C) | JC120B |
| Model | JC45 | JC60 | JC65 | JC75 | JC100 | JC120 |
| Overall operating height (mm) | 3670 | 3690 | 4000 | 4070 | 4070 | 4070 |
| Height to bucket hinge pin (mm) | 2900 | 2920 | 3100 | 3150 | 3150 | 3150 |
| height to top of cab (mm) | 2030 | 2050 | 2160 | 2160 | 2160 | 2160 |
| Height to bottom of level bucket(mm) | 2733 | 2753 | 2933 | 2983 | 2983 | 2983 |
| Overall length ithout bucket(mm) | 2450 | 2630 | 2750 | 2880 | 2880 | 2880 |
| overall length with bucket(mm) | 3200 | 3380 | 3490 | 3580 | 3580 | 3580 |
| Dumping angle at maximum height(° ) | 40 | 40 | 40 | 40 | 40 | 40 |
| Dumping height(mm) | 2380 | 2400 | 2400 | 2450 | 2450 | 2450 |
| Dumping reach(mm) | 700 | 750 | 750 | 700 | 700 | 700 |
| Rollback o bucket on ground(° ) | 30 | 30 | 30 | 30 | 30 | 30 |
| Rollback of bucket at full height(° ) | 104 | 104 | 104 | 104 | 104 | 104 |
| Wheelbase(mm) | 991 | 991 | 1085 | 1115 | 1185 | 1185 |
| Ground clearance(mm) | 185 | 205 | 205 | 205 | 205 | 205 |
| Angleof departure(° ) | 20 | 20 | 20 | 20 | 20 | 20 |
| Front turning radins without bucket(mm) | 1168 | 1198 | 1204 | 1250 | 1278 | 1278 |
| Front tuning radius(mm) | 1958 | 1958 | 2030 | 2112 | 2144 | 2144 |
| Rear tuning radius(mm) | 1630 | 1728 | 1706 | 1774 | 1857 | 1857 |
| Rear axle to bumper (mm) | 1108 | 1208 | 1082 | 1082 | 1082 | 1082 |
| Tread width,enterline to centerline (mm) | 1450 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Width (mm) | 1720 | 1800 | 1880 | 1880 | 1880 | 1880 |
| Bucket width (mm) | 1740 | 1820 | 1880 | 1880 | 1880 | 1880 |
| Operating load (kg) | 700 | 850 | 950 | 1050 | 1200 | 1500 |
| Max Speed(km/h) | 12 | 12 | 12 | 12 | 12/18 | 12/18 |
| Rated flux (L/min) | 62.5 | 75 | 80 | 80 | 80 | 80 |
| Tire(track) model | 10-16.5 | 12-16.5 | 12-16.5 | 12-16.5 | 12-16.5 | 12-16.5 |
| Rated power (Kw) | 37 | 45 | 55 | 55 | 74 | 103 |
| Fuel tank capacity (L) | 60 | 60 | 75 | 75 | 90 | 90 |
| self weight bucket (kg) | 2600 | 3000 | 3350 | 3500 | 3550 | 3600 |
| Bucket capacity (m 3 ) | 0.4 | 0.45 | 0.5 | 0.5 | 0.55 | 0.55 |
