Product Details:
|
Product Name: | Telescopic Handler Forklift | Rated Load: | 5000KG |
---|---|---|---|
Max.Lifting Height: | 7000mm | Engine: | Dongfeng Cummins |
Advantage: | Versatility, Stability, Maneuverability | Color: | Customsized |
High Light: | 7ton Telescopic Handler Forklift,7ton Telescopic Boom Handler,Reliability Telescopic Boom Handler |

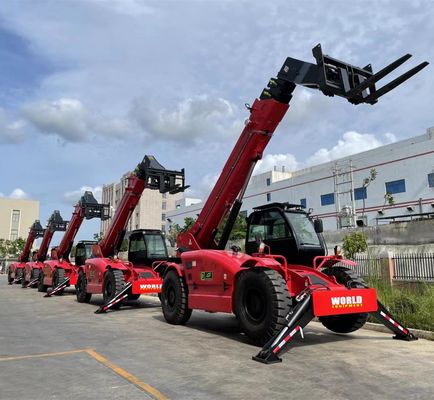

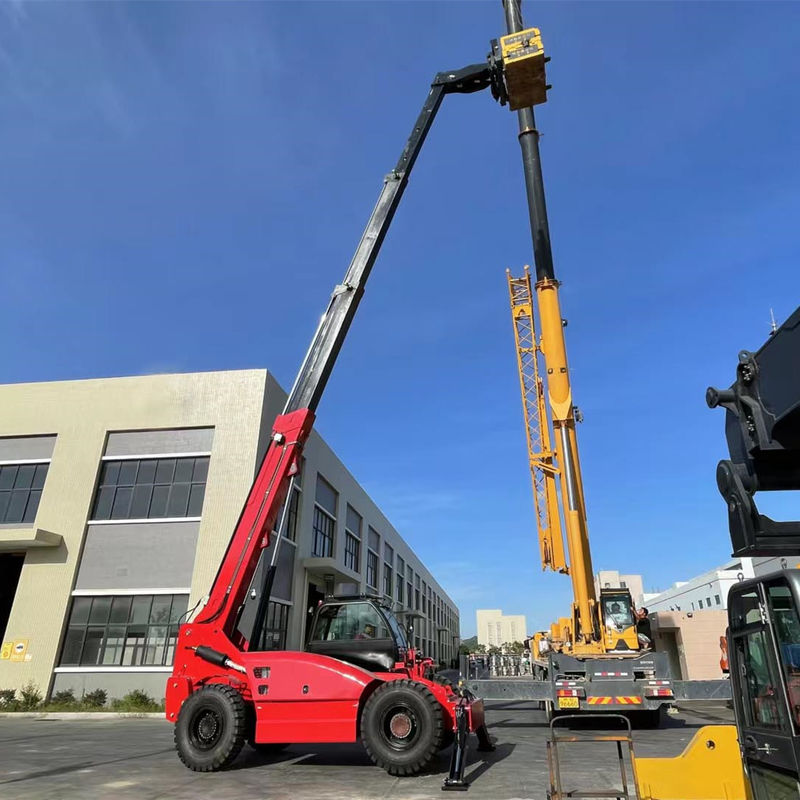

Telescopic Forklift Telehandler Telehandler 7ton Telescopic Boom Handler Forklift Loader CE Good Price WEA7017-4
1. This telescopic forklift WEA7017-4 which features the highest operation simplicity, safety and efficiency.
2. The electronically controlled hydrostatic drive system and conthuously variable drive technology achieve more stable and reliable operations.
3. The panoram ic cab and the WEA' s visual identity appearance design feature good fashion and elegance.the whole shape of the atmosphere,beautiful and smooth; luxury wide view cabin,low noise and good sealing.
4. The engine is chinese famous reliability QSB4.5-C160 Torbur Charges engine,Using well-known brand diesel engine, strong-power, energy saving and environment protection,to meet the requirements of efficient operations
5. This series models standard with electronic hand-brake, compared to the soft-axis handbrake, have a substantial increase in the operability,asthetics and sensi-tivity.
6. This series models standard with electronic off-axle function, compared to the manual soft shaft off-bridge mechanism,the operation is more convenient and concise, the performance also been greatly improved,can achieve two-wheel drive and four-wheel drive switch, can better adapt to different working condi-tions and reduce the degree of tire wear, protect the tiers better.
7. Parts are the ocalization,standardization,cost-effective,easy to purchzase and daily maintenance.
Items |
Unit |
Deviation allowed |
WEA7017-4 |
|||||
Rated load | kg | - | 7000 | |||||
Load center | mm | - | 600 | |||||
Load capacity @ max. Forward reach |
kg | - | 1200 | |||||
Max. Lifting height |
m | 1.50% | 16.9(打开支腿) | |||||
16.8(未打开支腿) | ||||||||
Max front reach with fork | m | 1.50% | 11.7 | |||||
Min. Ground clearance |
mm | 1.50% | 450 | |||||
Min. Turning radius outer tire center |
mm | 1.50% | 7500 | |||||
Angle |
Boom frame upward angle |
° | ±1 | 70 | ||||
Boom frame downward angle |
° | ±1 | -2 | |||||
Operating weight |
kg | 5% | 17000 | |||||
Length (with fork) |
mm | 2% | 6710 | |||||
Width |
mm | 2% | 2500 | |||||
Height |
mm | 2% | 2900 | |||||
Wheel base | mm | 2% | 3420 | |||||
front Wheel tread | mm | 2% | 2100 | |||||
rear Wheel tread | mm | 2% | 2100 | |||||
fork (L*W*T) | mm | - | 1220*150*65 | |||||
DF Cummins |
- | QSB4.5-C160-30 | ||||||
Rated power | kw/rpm | - | 119/2200 | |||||
Transmission type | - |
Hydraulic static transmission |
||||||
Max. Travelling speed (unloaded) | km/h | 10% | 25 | |||||
Gradeability | % | - | 25% | |||||
Front 2 pcs | - | - | 14.00-24-28PR | |||||
Rear 2pcs | - | - | 14.00-24-28PR | |||||
mm | 10% | 3790 |
