Smooth Beautiful Shape Telescopic Forks Forklift With Lifting Hooks
Basic Properties
Trading Properties
| Product Name: | Telescopic Handler Forklift | Rated Load: | 5000KG |
|---|---|---|---|
| Max.Lifting Height: | 7000mm | Engine: | Dongfeng Cummins |
| Advantage: | Versatility, Stability, Maneuverability | Color: | Customsized |
| Highlight | Lifting Hooks Telescopic Forks Forklift,Smooth Shape Telescopic Forks Forklift |
||

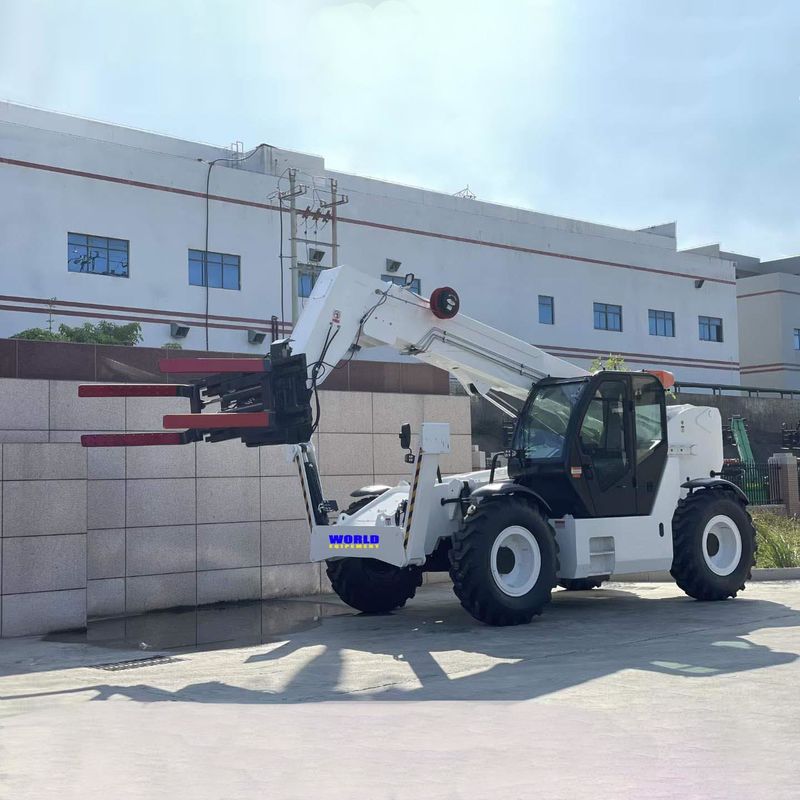

Telescopic Forklift Telehandler Telehandler 7ton Telescopic Boom Handler Forklift Loader CE Good Price WEA7017-4
1. This telescopic forklift WEA7017-4 which features the highest operation simplicity, safety and efficiency.
2. Working device is two stage quadrilateral telescopic working arm, telescopic arm use large cross-section,high-strength quadrilateral structure.

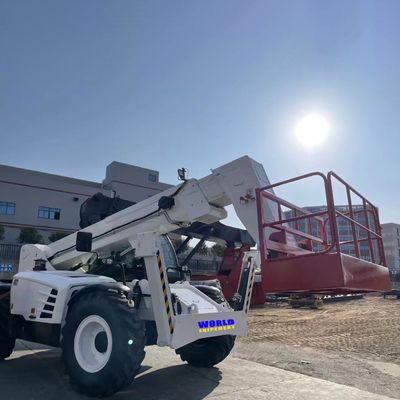

3. This model standard with forks,bucket,extension forks and aerial work platform are optional. Standard with quick hitch, can choose fork positional and side-shifter.
4.The use of adjustable direction machine, air seat, joystick control valve control distribution valve and work device oil,light and flexible operation,sitting more com-fortable.
5. Using maintenance-free battery,cab match with fan,radio,air conditioning,more comfortable and reliable.
6. The whole shape of the atmosphere,beautiful and smooth; luxury wide view cabin,low noise and good sealing.
|
Items |
Unit |
Deviation allowed |
WEA7017-4 |
|||||
| Rated load | kg | - | 7000 | |||||
| Load center | mm | - | 600 | |||||
|
Load capacity @ max. Forward reach |
kg | - | 1200 | |||||
|
Max. Lifting height |
m | 1.50% | 16.9(打开支腿) | |||||
| 16.8(未打开支腿) | ||||||||
| Max front reach with fork | m | 1.50% | 11.7 | |||||
|
Min. Ground clearance |
mm | 1.50% | 450 | |||||
|
Min. Turning radius outer tire center |
mm | 1.50% | 7500 | |||||
|
Angle |
Boom frame upward angle |
° | ±1 | 70 | ||||
|
Boom frame downward angle |
° | ±1 | -2 | |||||
|
Operating weight |
kg | 5% | 17000 | |||||
|
Length (with fork) |
mm | 2% | 6710 | |||||
|
Width |
mm | 2% | 2500 | |||||
|
Height |
mm | 2% | 2900 | |||||
| Wheel base | mm | 2% | 3420 | |||||
| front Wheel tread | mm | 2% | 2100 | |||||
| rear Wheel tread | mm | 2% | 2100 | |||||
| fork (L*W*T) | mm | - | 1220*150*65 | |||||
|
DF Cummins |
- | QSB4.5-C160-30 | ||||||
| Rated power | kw/rpm | - | 119/2200 | |||||
| Transmission type | - |
Hydraulic static transmission |
||||||
| Max. Travelling speed (unloaded) | km/h | 10% | 25 | |||||
| Gradeability | % | - | 25% | |||||
| Front 2 pcs | - | - | 14.00-24-28PR | |||||
| Rear 2pcs | - | - | 14.00-24-28PR | |||||
| mm | 10% | 3790 | ||||||
