Product Details:
|
| Product Name: | Telescopic Handler Forklift | Rated Load: | 5000KG |
|---|---|---|---|
| Max.Lifting Height: | 7000mm | Engine: | Dongfeng Cummins |
| Advantage: | Versatility, Stability, Maneuverability | Color: | Customsized |
| High Light: | 9 Meter Telescopic Handler Forklift,Strong Power Telescopic Handler Forklift |
||

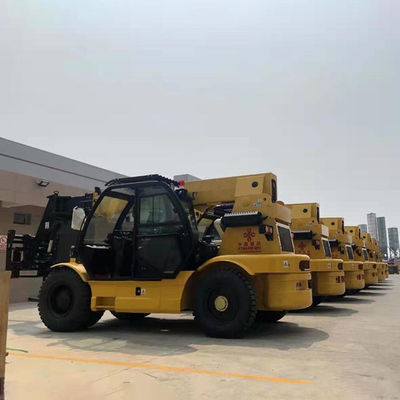

Telescopic Forklift Telehandler Telehandler 5ton 9 Meter Telescopic Boom Handler Forklift Lo With CE Good Price WEA50-4
1. This telescopic forklift WEA50-4 which features the highest operation simplicity, safety and efficiency.
2. Using well-known brand diesel engine, strong-power, energy saving and environment protection,to meet the requirements of efficient operations
3. Double turbo hydraulic torque converter,stepless speed change. Single-lever control transmission system,with 2 speeds for forward and reverse gears, easier to operate.
4. Use dual-pump combined hydraulic system, greatly reduce the fuel consumption and energy consumption
5. With full hydraulic coaxial flow amplification steer-ing system,turning radius for rear steering axle is small, steering light and flexible.

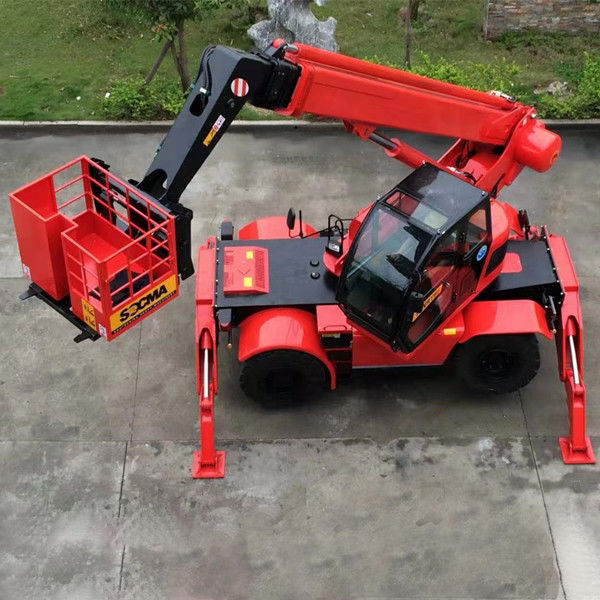

6. This model standard with forks,bucket,extension forks and aerial work platform are optional. Standard with quick hitch, can choose fork positional and side-shifter.
7. The use of adjustable direction machine, air seat, joystick control valve control distribution valve and work device oil,light and flexible operation,sitting more com-fortable.
8. Using maintenance-free battery,cab match with fan,radio,air conditioning,more comfortable and reliable.
| Items | Unit |
Deviation allowed |
WEA25-4 | WEA30-4 | WEA35-4 | WEA40-4 | WEA50-2 | WEA50H | ||
| 基本参数Basicparameter | Rated load | kg | - | 2500 | 3000 | 3500 | 4000 | 5000 | 5000 | |
| Load center | mm | - | 500 | 500 | 500 | 500 | 500 | 500 | ||
| Load capacity@max.Forward reach | kg | - | 1000 | 1250 | 1550 | 1800 | 1500 | 2000 | ||
| Basic boom max.Lifting height | mm | ±1.5% | 4850 | 4850 | 4850 | 4850 | 4500 | 5300 | ||
| Max.Lifting height | mm | ±1.5% | 7000 | 7000 | 7000 | 7000 | 7300 | 8800 | ||
| Max.Horizontal reach | mm | ±1.5% | 3350 | 3350 | 3350 | 3350 | 5700 | 5470 | ||
| Min.Horizontal reach | mm | ±1.5% | 930 | 930 | 930 | 930 | 1500 | 1270 | ||
| Min.Ground clearance | mm | ±1.5% | 400 | 400 | 400 | 400 | 310 | 310 | ||
| Min.Turning radius(外轮中心 outer tyre center) |
mm | ≤105% | 6200 | 6200 | 6200 | 6200 | 6800 | 6800 | ||
| Angle | Boom frame upward angle | . | ±1.0 | 60 | 60 | 60 | 60 | 43 | 60 | |
| Boom frame downward angle | . | ±1.0 | -11 | -11 | -11 | -11 | -14 | -12 | ||
| Operating weight | kg | ±5% | 8200 | 8600 | 9000 | 9440 | 13000 | 13000 | ||
| Overalldimension | Length(with fork) | mm | ±2% | 5730 | 5730 | 5730 | 5730 | 6288 | 5900 | |
| Width | mm | ±2% | 2390 | 2390 | 2390 | 2390 | 2300 | 2350 | ||
| Height | mm | ±2% | 2485 | 2485 | 2485 | 2485 | 2715 | 2655 | ||
| Wheel tread | mm | ±1% | 1870 | 1870 | 1870 | 1870 | 1638/1845 | 1638/1845 | ||
| Wheel base | mm | ±1% | 2700 | 2700 | 2700 | 2700 | 2988 | 2988 | ||
| Rated power/Rated turning speed | KWirimin | - | 60/2000 | 60/2000 | 60/2000 | 60/2000 | 74/2200 | 74/2200 | ||
| Drivingsystem | Max.Travelling speed (unloaded) | km/h | ±10% | 30 | 30 | 30 | 30 | 25 | 25 | |
| Grade ability | % | - | ≥30% | ≥30% | 230% | ≥30% | 220% | ≥20% | ||
| Tyre | Front wheel(2pcs) | - | - | 16/70-24 | 16/70-24 | 16/70-24 | 16/70-24 | 11.00-20 | 11.00-20 | |
| Rear wheel (2 pcs) | - | - | 10.00 -20-16 |
10.00 -20-16 |
10.00 -20-16 |
10.00 -20-16 |
9.00-20 | 9.00-20 | ||
| Engine | Dongfeng Cummins | 国二 National 2 |
4BTA3.9-C80II | 4BTA3.9-C80II | 4BTA3.9-C80II | 4BTA3.9-C80II | 4BTA3.9-C100II | 4BTA3.9-C100II | ||
| 国三 National 3 |
QSB3.9-C80 | QSB3.9-C80 | QSB3.9-C80 | QSB3.9-C80 | QSB3.9-C100 | QSB3.9-C100 | ||||
