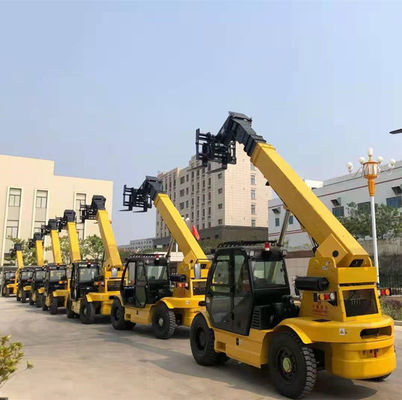

Hydraulic Telescopic Handler Forklift Versatility Maneuverability

Hydraulic Telescopic Handler Forklift Versatility Maneuverability
Hydraulic Telescopic Handler Forklift Versatility Maneuverability Hydraulic Telescopic Handler Forklift Versatility Maneuverability

Large Image :  Hydraulic Telescopic Handler Forklift Versatility Maneuverability

Product Details:
Place of Origin: China
Brand Name: World Equipment
Model Number: WEA50-4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10000-50000
Packaging Details: in nude
Delivery Time: 5-8Work days
Payment Terms: L/C, T/T
Supply Ability: 10 units per45days

Hydraulic Telescopic Handler Forklift Versatility Maneuverability

Description
Product Name: Telescopic Handler Forklift Rated Load: 5000KG
Max.Lifting Height: 7000mm Engine: Dongfeng Cummins
Advantage: Versatility, Stability, Maneuverability Color: Customsized
High Light:

Telescopic Handler Forklift Versatility

,

Telescopic Handler Forklift Maneuverability

Hydraulic Telescopic Fork Mini Telehandler Telescopic Handler For Forklift With CE Good Price WEA50-4



1. This telescopic forklift WEA50-4 which features the highest operation simplicity, safety and efficiency.

2. Two-wheel steering model: For common operations and high-speed site transfer.Four-wheel steering model: For operations in narrow spaces.Crab steering model:For operations in slanted narrow spaces

3. The panoram ic cab and the WEA' s visual identity appearance design feature good fashion and elegance.the whole shape of the atmosphere,beautiful and smooth; luxury wide view cabin,low noise and good sealing.



4. The engine is chinese famous reliability QSB4.5-C130 Torbur Charges engine,Using well-known brand diesel engine, strong-power, energy saving and environment protection,to meet the requirements of efficient operations

5. Equipped with hydro-static transmission, the machine is with good self-adaptability and operation ability. All of the hydraulic pump, main valve, hydraulic motor, rotary motor, central rotary joint, Hydraulic cylinder, pilot control valve adopts well-known brand.

6. Using the integral frame,can provide good rigidity and strength, to ensure high reliability of this type of chassis.Adopts cascade high intense fork, which is more strong, more durable in prolong the lifespan,

7. With design of side-turning large-opening hood, "one-stop" maintenance can be fulfilled for the engine oil filter, diesel filter, and air filter.Parallel integrated fuse box of centered control for easier and effective inspections.



Items
Unit

Deviation
allowed
WEA25-4 WEA30-4 WEA35-4 WEA40-4 WEA50-2 WEA50H
基本参数Basicparameter Rated load kg - 2500 3000 3500 4000 5000 5000
Load center mm - 500 500 500 500 500 500
Load capacity@max.Forward reach kg - 1000 1250 1550 1800 1500 2000
Basic boom max.Lifting height mm ±1.5% 4850 4850 4850 4850 4500 5300
Max.Lifting height mm ±1.5% 7000 7000 7000 7000 7300 8800
Max.Horizontal reach mm ±1.5% 3350 3350 3350 3350 5700 5470
Min.Horizontal reach mm ±1.5% 930 930 930 930 1500 1270
Min.Ground clearance mm ±1.5% 400 400 400 400 310 310
Min.Turning radius(外轮中心 outer tyre
center)
mm ≤105% 6200 6200 6200 6200 6800 6800
Angle Boom frame upward angle . ±1.0 60 60 60 60 43 60
Boom frame downward angle . ±1.0 -11 -11 -11 -11 -14 -12
Operating weight kg ±5% 8200 8600 9000 9440 13000 13000
Overalldimension Length(with fork) mm ±2% 5730 5730 5730 5730 6288 5900
Width mm ±2% 2390 2390 2390 2390 2300 2350
Height mm ±2% 2485 2485 2485 2485 2715 2655
Wheel tread mm ±1% 1870 1870 1870 1870 1638/1845 1638/1845
Wheel base mm ±1% 2700 2700 2700 2700 2988 2988
Rated power/Rated turning speed KWirimin - 60/2000 60/2000 60/2000 60/2000 74/2200 74/2200
Drivingsystem Max.Travelling speed (unloaded) km/h ±10% 30 30 30 30 25 25
Grade ability % - ≥30% ≥30% 230% ≥30% 220% ≥20%
Tyre Front wheel(2pcs) - - 16/70-24 16/70-24 16/70-24 16/70-24 11.00-20 11.00-20
Rear wheel (2 pcs) - - 10.00
-20-16
10.00
-20-16
10.00
-20-16
10.00
-20-16
9.00-20 9.00-20
Engine Dongfeng Cummins   国二
National 2
4BTA3.9-C80II 4BTA3.9-C80II 4BTA3.9-C80II 4BTA3.9-C80II 4BTA3.9-C100II 4BTA3.9-C100II
  国三
National 3
QSB3.9-C80 QSB3.9-C80 QSB3.9-C80 QSB3.9-C80 QSB3.9-C100 QSB3.9-C100
