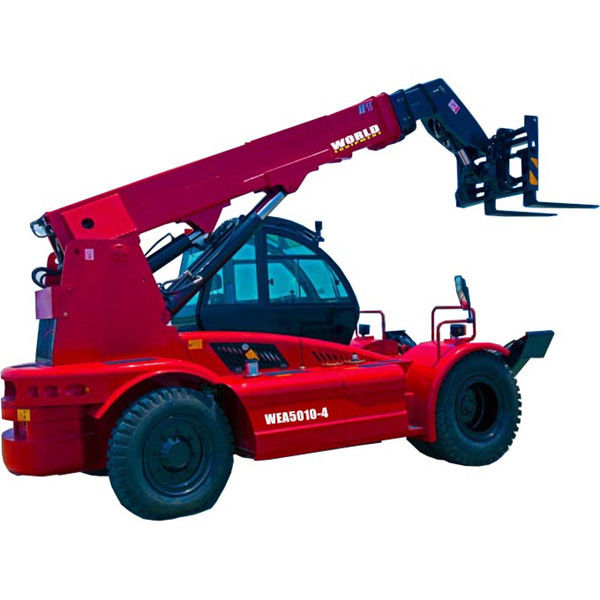

Self Adaptability Telescopic Handler Crane 500mm Stable Operations

Self Adaptability Telescopic Handler Crane 500mm Stable Operations
Self Adaptability Telescopic Handler Crane 500mm Stable Operations Self Adaptability Telescopic Handler Crane 500mm Stable Operations

Large Image :  Self Adaptability Telescopic Handler Crane 500mm Stable Operations

Product Details:
Place of Origin: China
Brand Name: World Equipment
Model Number: WEA50-4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10000-50000
Packaging Details: in nude
Delivery Time: 5-8Work days
Payment Terms: L/C, T/T
Supply Ability: 10 units per45days

Self Adaptability Telescopic Handler Crane 500mm Stable Operations

Description
Product Name: Telescopic Handler Forklift Rated Load: 5000KG
Max.Lifting Height: 7000mm Engine: Dongfeng Cummins
Advantage: Versatility, Stability, Maneuverability Color: Customsized
High Light:

elescopic Handler Crane 500mm

,

Self Adaptability Telescopic Handler Crane

Hot Sale Telehandler 5on Telescopic Forklift Handler With CE Good Price WEA50-4



1. This telescopic forklift WEA50-4 which features the highest operation simplicity, safety and efficiency.

2. The electronically controlled hydrostatic drive system and conthuously variable drive technology achieve more stable and reliable operations.

3. The panoram ic cab and the WEA' s visual identity appearance design feature,beautiful and smooth; luxury wide view cabin,low noise and good sealing.



4. The engine is chinese famous reliability QSB4.5-C130 Torbur Charges engine,Using well-known brand diesel engine, strong-power, energy saving and environment protection.

5. Equipped with hydro-static transmission, the machine is with good self-adaptability and operation ability. All of the hydraulic pump, main valve, hydraulic motor, rotary motor, central rotary joint, Hydraulic cylinder, pilot control valve adopts well-known brand.

6. The four-wheel drive and multiple steering modes (including four-wheel,two-wheel,and crab steering modes) realize super-strong off-road capability and adapt to diversified working conditions.

7. The frame leveling function equipped (The body is capable of 10° swing in both leftward and rightward directions) realizes powerful site adaptability and meets the needs of diversified working conditions.

8. Parts are the ocalization,standardization,cost-effective,easy to purchzase and daily maintenance.



Items
Unit

Deviation
allowed
WEA25-4 WEA30-4 WEA35-4 WEA40-4 WEA50-2 WEA50H
基本参数Basicparameter Rated load kg - 2500 3000 3500 4000 5000 5000
Load center mm - 500 500 500 500 500 500
Load capacity@max.Forward reach kg - 1000 1250 1550 1800 1500 2000
Basic boom max.Lifting height mm ±1.5% 4850 4850 4850 4850 4500 5300
Max.Lifting height mm ±1.5% 7000 7000 7000 7000 7300 8800
Max.Horizontal reach mm ±1.5% 3350 3350 3350 3350 5700 5470
Min.Horizontal reach mm ±1.5% 930 930 930 930 1500 1270
Min.Ground clearance mm ±1.5% 400 400 400 400 310 310
Min.Turning radius(外轮中心 outer tyre
center)
mm ≤105% 6200 6200 6200 6200 6800 6800
Angle Boom frame upward angle . ±1.0 60 60 60 60 43 60
Boom frame downward angle . ±1.0 -11 -11 -11 -11 -14 -12
Operating weight kg ±5% 8200 8600 9000 9440 13000 13000
Overalldimension Length(with fork) mm ±2% 5730 5730 5730 5730 6288 5900
Width mm ±2% 2390 2390 2390 2390 2300 2350
Height mm ±2% 2485 2485 2485 2485 2715 2655
Wheel tread mm ±1% 1870 1870 1870 1870 1638/1845 1638/1845
Wheel base mm ±1% 2700 2700 2700 2700 2988 2988
Rated power/Rated turning speed KWirimin - 60/2000 60/2000 60/2000 60/2000 74/2200 74/2200
Drivingsystem Max.Travelling speed (unloaded) km/h ±10% 30 30 30 30 25 25
Grade ability % - ≥30% ≥30% 230% ≥30% 220% ≥20%
Tyre Front wheel(2pcs) - - 16/70-24 16/70-24 16/70-24 16/70-24 11.00-20 11.00-20
Rear wheel (2 pcs) - - 10.00
-20-16
10.00
-20-16
10.00
-20-16
10.00
-20-16
9.00-20 9.00-20
Engine Dongfeng Cummins   国二
National 2
4BTA3.9-C80II 4BTA3.9-C80II 4BTA3.9-C80II 4BTA3.9-C80II 4BTA3.9-C100II 4BTA3.9-C100II
  国三
National 3
QSB3.9-C80 QSB3.9-C80 QSB3.9-C80 QSB3.9-C80 QSB3.9-C100 QSB3.9-C100
