Product Details:
|
| Product Name: | Telescopic Handler Forklift | Rated Load: | 5000KG |
|---|---|---|---|
| Max.Lifting Height: | 7000mm | Engine: | Dongfeng Cummins |
| Advantage: | Versatility, Stability, Maneuverability | Color: | Customsized |
| Highlight: | 4ton Telescopic Forklift Handler,Two Wheel Modes Telescopic Forklift Handler |
||

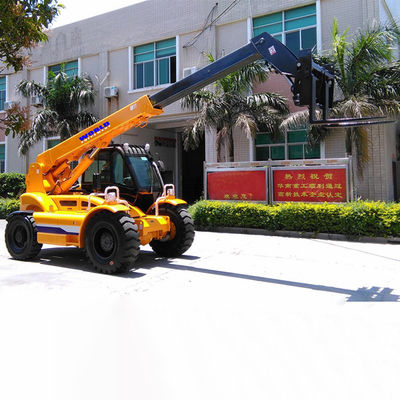

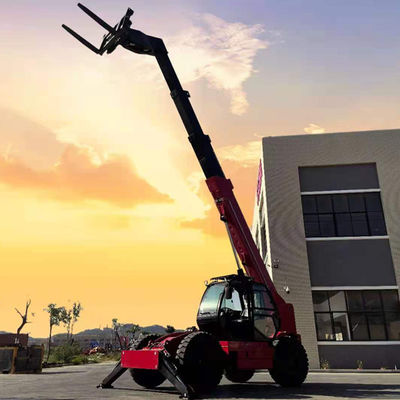

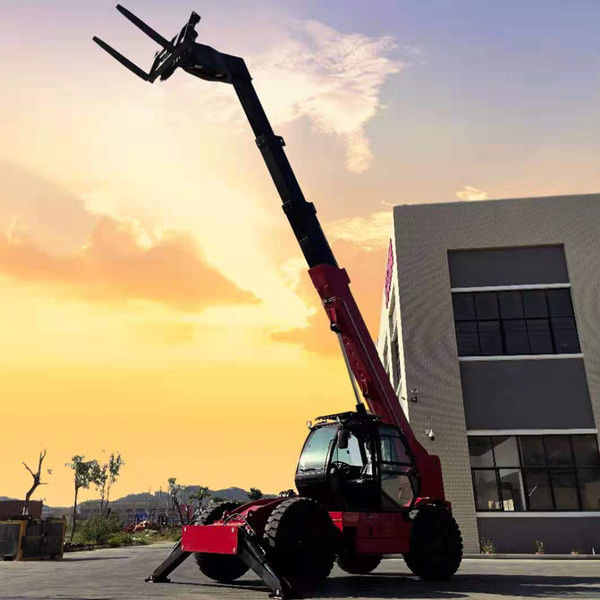

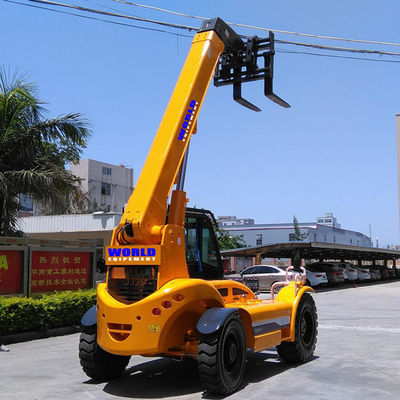

Hot Sale Telehandler 4Ton Telescopic Forklift Handler With CE Good Price WEA40-4
1. This telescopic forklift WEA40-4 which features the highest operation simplicity, safety and efficiency.
2. The electronically controlled hydrostatic drive system and conthuously variable drive technology achieve more stable and reliable operations.
3. The panoram ic cab and the WEA' s visual identity appearance design feature good fashion and elegance.the whole shape of the atmosphere,beautiful and smooth; luxury wide view cabin,low noise and good sealing.
4. The engine is chinese famous reliability QSB4.5-C160 Torbur Charges engine,Using well-known brand diesel engine, strong-power, energy saving and environment protection,to meet the requirements of efficient operations
5. Equipped with hydro-static transmission, the machine is with good self-adaptability and operation ability. All of the hydraulic pump, main valve, hydraulic motor, rotary motor, central rotary joint, Hydraulic cylinder, pilot control valve adopts well-known brand.
6. The four-wheel drive and multiple steering modes (including four-wheel,two-wheel,and crab steering modes) realize super-strong off-road capability and adapt to diversified working conditions.
7. Parts are the ocalization,standardization,cost-effective,easy to purchzase and daily maintenance.
| Items | Unit |
Deviation allowed |
WEA25-4 | WEA30-4 | WEA35-4 | WEA40-4 | WEA50-2 | WEA50H | ||
| 基本参数Basicparameter | Rated load | kg | - | 2500 | 3000 | 3500 | 4000 | 5000 | 5000 | |
| Load center | mm | - | 500 | 500 | 500 | 500 | 500 | 500 | ||
| Load capacity@max.Forward reach | kg | - | 1000 | 1250 | 1550 | 1800 | 1500 | 2000 | ||
| Basic boom max.Lifting height | mm | ±1.5% | 4850 | 4850 | 4850 | 4850 | 4500 | 5300 | ||
| Max.Lifting height | mm | ±1.5% | 7000 | 7000 | 7000 | 7000 | 7300 | 8800 | ||
| Max.Horizontal reach | mm | ±1.5% | 3350 | 3350 | 3350 | 3350 | 5700 | 5470 | ||
| Min.Horizontal reach | mm | ±1.5% | 930 | 930 | 930 | 930 | 1500 | 1270 | ||
| Min.Ground clearance | mm | ±1.5% | 400 | 400 | 400 | 400 | 310 | 310 | ||
| Min.Turning radius(外轮中心 outer tyre center) |
mm | ≤105% | 6200 | 6200 | 6200 | 6200 | 6800 | 6800 | ||
| Angle | Boom frame upward angle | . | ±1.0 | 60 | 60 | 60 | 60 | 43 | 60 | |
| Boom frame downward angle | . | ±1.0 | -11 | -11 | -11 | -11 | -14 | -12 | ||
| Operating weight | kg | ±5% | 8200 | 8600 | 9000 | 9440 | 13000 | 13000 | ||
| Overalldimension | Length(with fork) | mm | ±2% | 5730 | 5730 | 5730 | 5730 | 6288 | 5900 | |
| Width | mm | ±2% | 2390 | 2390 | 2390 | 2390 | 2300 | 2350 | ||
| Height | mm | ±2% | 2485 | 2485 | 2485 | 2485 | 2715 | 2655 | ||
| Wheel tread | mm | ±1% | 1870 | 1870 | 1870 | 1870 | 1638/1845 | 1638/1845 | ||
| Wheel base | mm | ±1% | 2700 | 2700 | 2700 | 2700 | 2988 | 2988 | ||
| Rated power/Rated turning speed | KWirimin | - | 60/2000 | 60/2000 | 60/2000 | 60/2000 | 74/2200 | 74/2200 | ||
| Drivingsystem | Max.Travelling speed (unloaded) | km/h | ±10% | 30 | 30 | 30 | 30 | 25 | 25 | |
| Grade ability | % | - | ≥30% | ≥30% | 230% | ≥30% | 220% | ≥20% | ||
| Tyre | Front wheel(2pcs) | - | - | 16/70-24 | 16/70-24 | 16/70-24 | 16/70-24 | 11.00-20 | 11.00-20 | |
| Rear wheel (2 pcs) | - | - | 10.00 -20-16 |
10.00 -20-16 |
10.00 -20-16 |
10.00 -20-16 |
9.00-20 | 9.00-20 | ||
| Engine | Dongfeng Cummins | 国二 National 2 |
4BTA3.9-C80II | 4BTA3.9-C80II | 4BTA3.9-C80II | 4BTA3.9-C80II | 4BTA3.9-C100II | 4BTA3.9-C100II | ||
| 国三 National 3 |
QSB3.9-C80 | QSB3.9-C80 | QSB3.9-C80 | QSB3.9-C80 | QSB3.9-C100 | QSB3.9-C100 | ||||
