Product Details:
|
| Product Name: | Telescopic Handler Forklift | Rated Load: | 5000KG |
|---|---|---|---|
| Max.Lifting Height: | 7000mm | Engine: | Dongfeng Cummins |
| Advantage: | Versatility, Stability, Maneuverability | Color: | Customsized |
| Highlight: | Telescopic Handler Forklift 4ton,4ton Extended Boom Forklift,7 Meter Telescopic Handler Forklift |
||

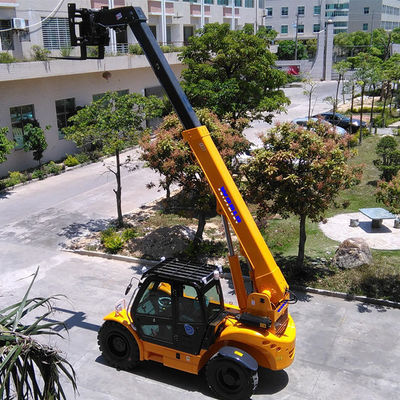

WEA40-4 Telescopic Forklift Telehandler Telehandler 4ton 7 Meter Telescopic Boom Handler Forklift Loa With CE Good Price
1. This telescopic forklift WEA40-4 which features the highest operation simplicity, safety and efficiency.
2. The electronically controlled hydrostatic drive system and conthuously variable drive technology achieve more stable and reliable operations.
3. The panoram ic cab and the WEA' s visual identity appearance design feature good fashion and elegance.Luxury and comfortable cabin with soundproof, thermal insulation, vibration reduction and open visionary.
4. The engine is chinese famous reliability QSB4.5-C160 Torbur Charges engine,Using well-known brand diesel engine, strong-power, energy saving and environment protection,to meet the requirements of efficient operations
5. Double turbo hydraulic torque converter,stepless speed change. Single-lever control transmission system,with 2 speeds for forward and reverse gears, easier to operate.Hydraulic cylinder, pilot control valve adopts well-known brand.
6. Use dual-pump combined hydraulic system, greatly reduce the fuel consumption and energy consumption.
7. With full hydraulic coaxial flow amplification steer-ing system,turning radius for rear steering axle is small, steering light and flexible
8. Using front wheel drive,rigid suspention,rear axle steering structure, can achieve four-wheel drive.Front axle spiral bevel gear and wheel side planetary wheel to reduce the speed and increase torque,have excellent load capacity
9. Adopts cascade high intense fork, which is more strong, more durable in prolong the lifespan,The whole shape of the atmosphere,beautiful and smooth; luxury wide view cabin,low noise and good sealing.
| Items | Unit |
Deviation allowed |
WEA25-4 | WEA30-4 | WEA35-4 | WEA40-4 | WEA50-2 | WEA50H | ||
| 基本参数Basicparameter | Rated load | kg | - | 2500 | 3000 | 3500 | 4000 | 5000 | 5000 | |
| Load center | mm | - | 500 | 500 | 500 | 500 | 500 | 500 | ||
| Load capacity@max.Forward reach | kg | - | 1000 | 1250 | 1550 | 1800 | 1500 | 2000 | ||
| Basic boom max.Lifting height | mm | ±1.5% | 4850 | 4850 | 4850 | 4850 | 4500 | 5300 | ||
| Max.Lifting height | mm | ±1.5% | 7000 | 7000 | 7000 | 7000 | 7300 | 8800 | ||
| Max.Horizontal reach | mm | ±1.5% | 3350 | 3350 | 3350 | 3350 | 5700 | 5470 | ||
| Min.Horizontal reach | mm | ±1.5% | 930 | 930 | 930 | 930 | 1500 | 1270 | ||
| Min.Ground clearance | mm | ±1.5% | 400 | 400 | 400 | 400 | 310 | 310 | ||
| Min.Turning radius(外轮中心 outer tyre center) |
mm | ≤105% | 6200 | 6200 | 6200 | 6200 | 6800 | 6800 | ||
| Angle | Boom frame upward angle | . | ±1.0 | 60 | 60 | 60 | 60 | 43 | 60 | |
| Boom frame downward angle | . | ±1.0 | -11 | -11 | -11 | -11 | -14 | -12 | ||
| Operating weight | kg | ±5% | 8200 | 8600 | 9000 | 9440 | 13000 | 13000 | ||
| Overalldimension | Length(with fork) | mm | ±2% | 5730 | 5730 | 5730 | 5730 | 6288 | 5900 | |
| Width | mm | ±2% | 2390 | 2390 | 2390 | 2390 | 2300 | 2350 | ||
| Height | mm | ±2% | 2485 | 2485 | 2485 | 2485 | 2715 | 2655 | ||
| Wheel tread | mm | ±1% | 1870 | 1870 | 1870 | 1870 | 1638/1845 | 1638/1845 | ||
| Wheel base | mm | ±1% | 2700 | 2700 | 2700 | 2700 | 2988 | 2988 | ||
| Rated power/Rated turning speed | KWirimin | - | 60/2000 | 60/2000 | 60/2000 | 60/2000 | 74/2200 | 74/2200 | ||
| Drivingsystem | Max.Travelling speed (unloaded) | km/h | ±10% | 30 | 30 | 30 | 30 | 25 | 25 | |
| Grade ability | % | - | ≥30% | ≥30% | 230% | ≥30% | 220% | ≥20% | ||
| Tyre | Front wheel(2pcs) | - | - | 16/70-24 | 16/70-24 | 16/70-24 | 16/70-24 | 11.00-20 | 11.00-20 | |
| Rear wheel (2 pcs) | - | - | 10.00 -20-16 |
10.00 -20-16 |
10.00 -20-16 |
10.00 -20-16 |
9.00-20 | 9.00-20 | ||
| Engine | Dongfeng Cummins | 国二 National 2 |
4BTA3.9-C80II | 4BTA3.9-C80II | 4BTA3.9-C80II | 4BTA3.9-C80II | 4BTA3.9-C100II | 4BTA3.9-C100II | ||
| 国三 National 3 |
QSB3.9-C80 | QSB3.9-C80 | QSB3.9-C80 | QSB3.9-C80 | QSB3.9-C100 | QSB3.9-C100 | ||||
