Product Details:
|
Product Name: | Telescopic Handler Forklift | Rated Load: | 5000KG |
---|---|---|---|
Max.Lifting Height: | 7000mm | Engine: | Dongfeng Cummins |
Advantage: | Versatility, Stability, Maneuverability | Color: | Customsized |

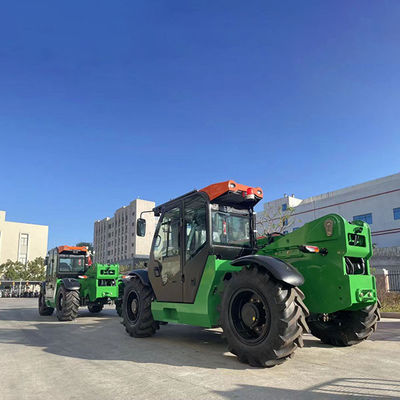

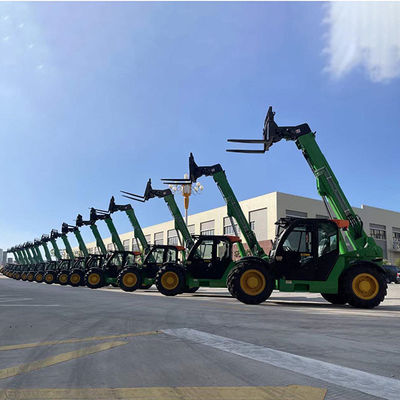

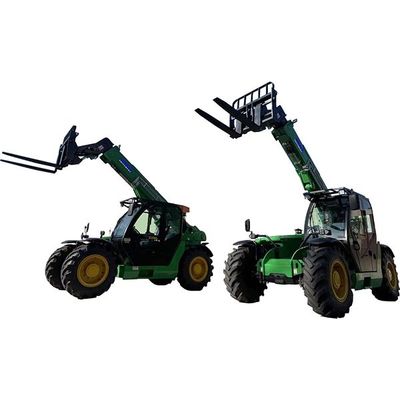

1,This telescopic forklift WEA35-4 which features the highest operation simplicity, safety and efficiency.
2, The electronically controlled hydrostatic drive system and conthuously variable drive technology achieve more stable and reliable operations.
3,The panoram ic cab and the WEA' s visual identity appearance design feature good fashion and elegance.
4,The engine is chinese famous reliability 4DK100-T304 Torbur Charges engine,or cummins engine.
5,Equipped with hydro-static transmission, the machine is with good self-adaptability and operation ability. All of the hydraulic pump, main valve, hydraulic motor, rotary motor, central rotary joint, Hydraulic cylinder, pilot control valve adopts well-known brand.
6, Adopts cascade high intense fork, which is more strong, more durable in prolong the lifespan
Items | Unit |
Deviation allowed |
WEA25-4 | WEA30-4 | WEA35-4 | WEA40-4 | WEA50-2 | WEA50H | ||
基本参数Basicparameter | Rated load | kg | - | 2500 | 3000 | 3500 | 4000 | 5000 | 5000 | |
Load center | mm | - | 500 | 500 | 500 | 500 | 500 | 500 | ||
Load capacity@max.Forward reach | kg | - | 1000 | 1250 | 1550 | 1800 | 1500 | 2000 | ||
Basic boom max.Lifting height | mm | ±1.5% | 4850 | 4850 | 4850 | 4850 | 4500 | 5300 | ||
Max.Lifting height | mm | ±1.5% | 7000 | 7000 | 7000 | 7000 | 7300 | 8800 | ||
Max.Horizontal reach | mm | ±1.5% | 3350 | 3350 | 3350 | 3350 | 5700 | 5470 | ||
Min.Horizontal reach | mm | ±1.5% | 930 | 930 | 930 | 930 | 1500 | 1270 | ||
Min.Ground clearance | mm | ±1.5% | 400 | 400 | 400 | 400 | 310 | 310 | ||
Min.Turning radius(外轮中心 outer tyre center) |
mm | ≤105% | 6200 | 6200 | 6200 | 6200 | 6800 | 6800 | ||
Angle | Boom frame upward angle | . | ±1.0 | 60 | 60 | 60 | 60 | 43 | 60 | |
Boom frame downward angle | . | ±1.0 | -11 | -11 | -11 | -11 | -14 | -12 | ||
Operating weight | kg | ±5% | 8200 | 8600 | 9000 | 9440 | 13000 | 13000 | ||
Overalldimension | Length(with fork) | mm | ±2% | 5730 | 5730 | 5730 | 5730 | 6288 | 5900 | |
Width | mm | ±2% | 2390 | 2390 | 2390 | 2390 | 2300 | 2350 | ||
Height | mm | ±2% | 2485 | 2485 | 2485 | 2485 | 2715 | 2655 | ||
Wheel tread | mm | ±1% | 1870 | 1870 | 1870 | 1870 | 1638/1845 | 1638/1845 | ||
Wheel base | mm | ±1% | 2700 | 2700 | 2700 | 2700 | 2988 | 2988 | ||
Rated power/Rated turning speed | KWirimin | - | 60/2000 | 60/2000 | 60/2000 | 60/2000 | 74/2200 | 74/2200 | ||
Drivingsystem | Max.Travelling speed (unloaded) | km/h | ±10% | 30 | 30 | 30 | 30 | 25 | 25 | |
Grade ability | % | - | ≥30% | ≥30% | 230% | ≥30% | 220% | ≥20% | ||
Tyre | Front wheel(2pcs) | - | - | 16/70-24 | 16/70-24 | 16/70-24 | 16/70-24 | 11.00-20 | 11.00-20 | |
Rear wheel (2 pcs) | - | - | 10.00 -20-16 |
10.00 -20-16 |
10.00 -20-16 |
10.00 -20-16 |
9.00-20 | 9.00-20 | ||
Engine | Dongfeng Cummins | 国二 National 2 |
4BTA3.9-C80II | 4BTA3.9-C80II | 4BTA3.9-C80II | 4BTA3.9-C80II | 4BTA3.9-C100II | 4BTA3.9-C100II | ||
国三 National 3 |
QSB3.9-C80 | QSB3.9-C80 | QSB3.9-C80 | QSB3.9-C80 | QSB3.9-C100 | QSB3.9-C100 |
