Product Details:
|
| Rated load (Kg): | 5000 | Operating Weight(kg): | 16500 |
|---|---|---|---|
| Max Breakout Force: | ≥175KN | Maximum Tractive Force: | 145KN |
| Maximum Grade Ability: | 30℃ | Maximum Dump Height: | 3142mm |
| Maximum Dump Reach: | 1250mm | Overall Dimension (L×W×H): | 8085×2965×3450mm |
| Minimum Turning Radius: | 6732mm | Engine Model: | Shangchai C6121 Engine |
| No. Of Cylinder-bore/stroke: | 6－121×152mm | Rated Power: | 162kw--2200r/min |
| Maximum Torque: | 843N.m | Min Fuel-consume Ratio: | ≤215g/kw.h |
| Gearbox Mode: | Power Shift Planetary Structure | Gear Shift: | 2 Forward Shift And1 Reverse Shift |
| Maximum Speed: | 38km/h | Fuel Tank Capacity: | 292L |
| Function Of Leveling Automatically: | Yes | Type Specification: | 23.5-25 |
| Highlight: | Cummins Engine Wheel Loader,Shangchai Engine Wheel Loader,Weichai Engine Wheel Loader |
||

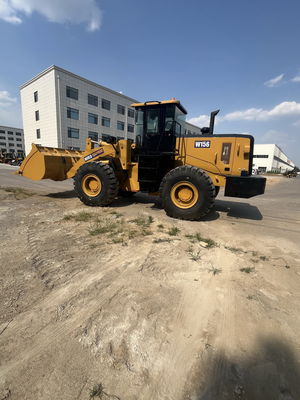

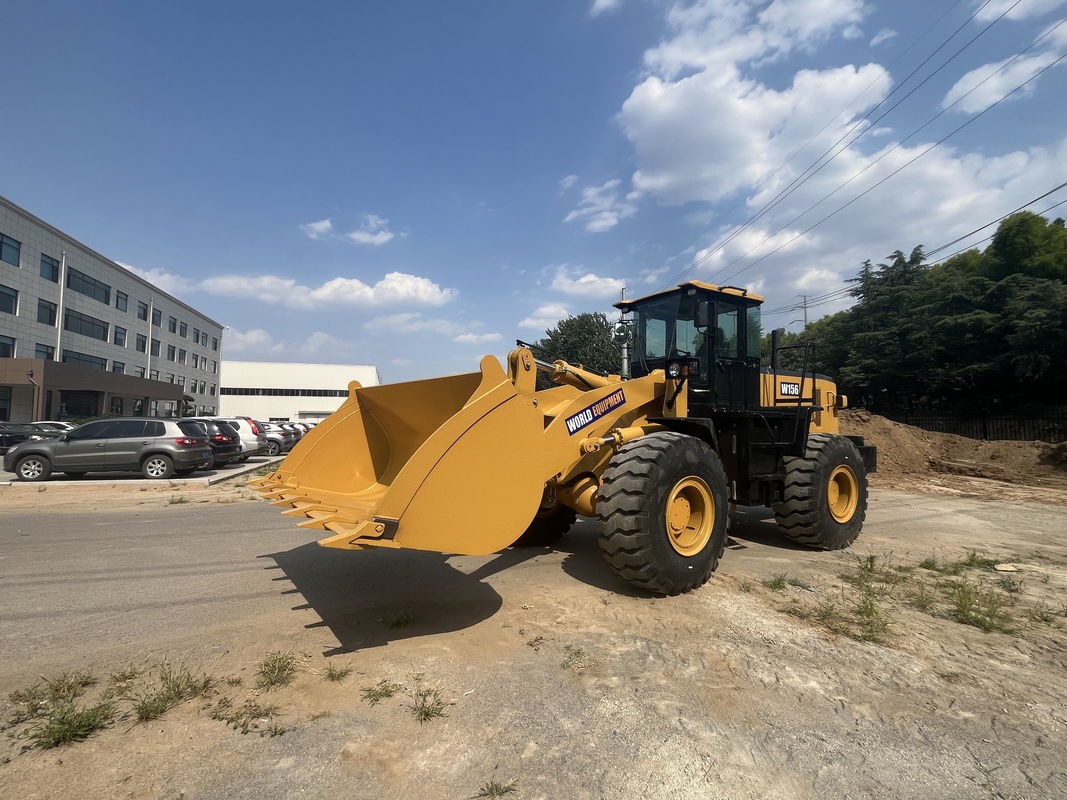

wheel loader with Cummins or shangchai or weichai engine or ZF Transmission case similar to XCMG ZL50GN
Specificaiton:
| Performance | 1 | rated load | 5000kg |
| 2 | overall weight | 16500kg | |
| 3 | rated bucket capacity | 3.0m3 | |
| 4 | maximum tractive force | 145KN | |
| 5 | maximum breakout force | ≥175KN | |
| 6 | maximum grade ability | 30℃ | |
| 7 | maximum dump height | 3142mm | |
| 8 | maximum dump reach | 1250mm | |
| 9 | overall dimension (L×W×H) | 8085×2965×3450mm | |
| 10 | minimum turning radius | 6732mm | |
| Engine | 11 | model | Shangchai C6121 engine |
| 12 | type |
lnline water cooling dry cylinder injection |
|
| 13 | No. of cylinder-bore/stroke | 6－121×152mm | |
| 14 | rated power | 162kw--2200r/min | |
| 15 | maximum torque | 843N.m | |
| 16 | min fuel-consume ratio | ≤215g/kw.h | |
|
Transmission system |
17 | torque converter | Single stage two phase four components |
| 18 | gearbox mode | Power shift planetary structure | |
| 19 | gear shift |
2 forward shift 1 reverse shift |
|
| 20 | maximum speed | 38km/h | |
| Drive axles | 21 |
main reducing spiral
|
bevel gear grade 1reduction |
| 22 | decelerating mode |
planetary reduction,grade 1 |
|
| 23 | wheel base (mm) | 3250mm | |
| 24 | wheel tread(mm) | 2250mm | |
| 25 | minimum ground clearance | 450mm | |
|
Hydraulic system |
26 | system working pressure | 18MPa |
| 27 | boom lifting time | 5.1s | |
| 28 | total time | 9.3s | |
| 29 | fuel tank capacity | 292L | |
| 30 |
function of leveling automatically |
yes | |
|
Brake system |
31 | service brake |
air over hydraulic disc brake on 4 wheels |
| 32 | parking brake | Break air brake | |
|
Tyre |
33 | ype specification | 23.5-25 |
| 34 | Front wheel air pressure | 0.4Mpa | |
| 35 | Rear wheel pressure |
0.35Mpa
|
1.A name-brand Engine, high power, low oil-consumption, low noise and reliable performance.
2.Double turbine hydraulic torque converter,planet power shifting transmission and higher transmission efficiency.
3.Reinforced axles by optimization of European technology has stronger bearing capacity, more stronger driving power and higher reliability
4.Rear frame with box structure, hinged panels with low stress and high strength steel——sturdy and durable；
5.Hydraulic parts and components such as cylinder, pump, valve all adapt domestic and international famous brands——stable and reliable.
