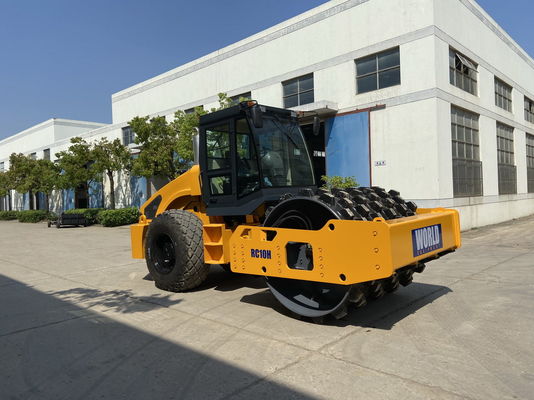

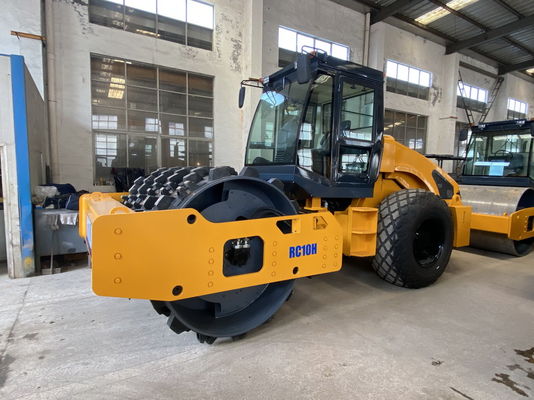

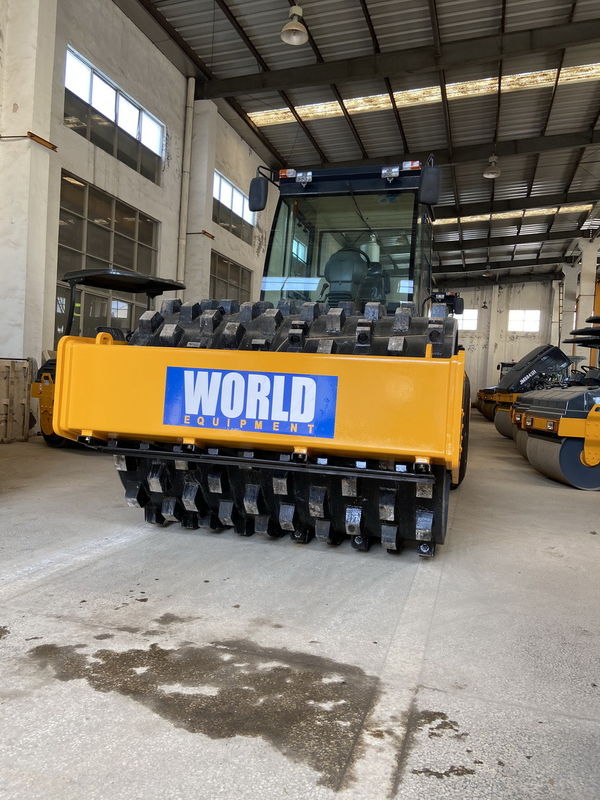

Pavement Construction Vibratory Road Roller With High Static Linear Load 280N/Cm

Pavement Construction Vibratory Road Roller With High Static Linear Load 280N/Cm
Pavement Construction Vibratory Road Roller With High Static Linear Load 280N/Cm Pavement Construction Vibratory Road Roller With High Static Linear Load 280N/Cm Pavement Construction Vibratory Road Roller With High Static Linear Load 280N/Cm Pavement Construction Vibratory Road Roller With High Static Linear Load 280N/Cm Pavement Construction Vibratory Road Roller With High Static Linear Load 280N/Cm

Large Image :  Pavement Construction Vibratory Road Roller With High Static Linear Load 280N/Cm

Product Details:
Place of Origin: China
Brand Name: WORLD WEA
Model Number: RC10H
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $43000-$52000
Packaging Details: nude
Delivery Time: 35 days
Payment Terms: T/T or LC
Supply Ability: 500 units/ month

Pavement Construction Vibratory Road Roller With High Static Linear Load 280N/Cm

Description
Type: Vibratory Road Roller Static Linear Load(N/cm): 280
Full Fuel Capacity  (L): 250 Overall Dimensions (mm)(L*W*H: 5850×2250×3080
Engine: Cummins 4BTA3.9-C125 Rolling Width (mm): 2130
Travel Speed (km/h): 0~5.5 ,0~10 Engine Power/speed (kW/rpm): 93/2200
High Light:

280N/cm Vibratory Road Roller

,

Pavement Vibratory Road Roller

,

Vibratory Roadway Compactor

Product Description:

Vibratory Road Roller is an ideal equipment for pavement construction and maintenance. It is a ride-on roller with Cummins 4BTA3.9-C125 engine, which provides an excellent performance and reliable operation. It has two vibration frequencies, 1.7 Hz and 0.8 Hz, and its static linear load is up to 280 N/cm. With a minimum turning radius of 6400mm, this vibratory road roller can travel at 0 – 5.5 km/h and 0 – 10 km/h. This pavement roller can efficiently compress and level the road surface, making it one of the most important machines in road construction.

Pavement Construction Vibratory Road Roller With High Static Linear Load 280N/Cm 0Pavement Construction Vibratory Road Roller With High Static Linear Load 280N/Cm 1Pavement Construction Vibratory Road Roller With High Static Linear Load 280N/Cm 2

Features:

  • Product Name: Vibratory Road Roller
  • Type: Smooth Drum Roller, Roadway Compactor, Tandem Roller
  • Travel speed (km/h): 0~5.5 ,0~10
  • Theoretical amplitude of vibration (mm): High
  • Rolling width (mm): 2130
  • Operating weight (kg): 10000


Technical Parameters:

Parameter Value
Type Vibratory Road Roller
Drum diameter (mm) 1500
Operating weight (kg) 10000
Theoretical amplitude of vibration (mm) High
Steering angle ± 35°
Static linear load(N/cm) 280
Minimum turning radius(Outside)mm 6400
Travel speed (km/h) 0~5.5,0~10
Overall dimensions (mm)(L*W*H 5850×2250×3080
Rolling width (mm) 2130
Vibration Roller Yes
Pneumatic Roller Yes
Roadway Compactor Yes


Applications:

WORLD WEA's Ride-On Roller, Vibration Roller, Tandem Roller, Compact Roller, Road Roller, Model Number RC10H is made in China with the minimum order quantity of 1. It is available at the price range of $43000-$52000, and comes in nude packaging for delivery within 35 days with payment terms of T/T or LC. This road roller has a supply ability of 500 units/month and has an overall dimension of 5850×2250×3080 mm. It has a powerful 93/2200 kW/rpm engine, a Cummins 4BTA3.9-C125 engine, and a rolling width of 2130 mm. Its operating weight is 10000 kg.



Customization:

Vibratory Road Roller

Brand Name: WORLD WEA
Model Number: RC10H
Place of Origin: China
Minimum Order Quantity: 1
Price: $43000-$52000
Packaging Details: nude
Delivery Time: 35 days
Payment Terms: T/T or LC
Supply Ability: 500 units/ month

Product Specifications:
Vibration frequency (Hz): 1.7/0.8
Full fuel capacity  (L): 250
Theoretical amplitude of vibration (mm): High
Travel speed (km/h): 0~5.5 ,0~10
Operating weight (kg): 10000

Product Description:
The RC10H vibratory road roller is an excellent pneumatic padfoot roller for rental or purchase. It is designed to handle a variety of applications, from compaction of asphalt and other materials to compaction of cohesionless and semi-cohesionless soils. The RC10H has a powerful engine, reliable hydraulic system, and comfortable operator compartment for maximum productivity and efficiency. With adjustable vibration frequency and amplitude, the RC10H is capable of handling a variety of applications with ease. With a full fuel capacity of 250 liters, the RC10H is a great choice for those looking for a high-performance vibratory road roller.



Support and Services:

Vibratory Road Roller Technical Support and Service

We provide technical support and service for Vibratory Road Roller products. Our team of technicians and service personnel are well-trained and equipped to assist with any product issues you may have, including installation, operation, maintenance, and repair.

We offer a comprehensive range of services, such as:

  • On-site inspections and troubleshooting
  • Preventative maintenance
  • Repairs and replacements
  • Operator training and advice
  • Software and hardware updates

Our team also provides technical support for product software, such as remote diagnostics and online support. We are committed to providing you with the best possible service and support to ensure that your Vibratory Road Roller products are running smoothly.



Packing and Shipping:

Packaging and Shipping of Vibratory Road Roller:

The Vibratory Road Roller will be packaged in wooden crates that are designed to protect the contents from any external damage. The crates will be bolted and sealed with tamper-evident seals to ensure the contents remain secure during transit. The crates will be labeled with the contents and destination to ensure they are not misplaced.

The Vibratory Road Roller will be shipped by land or sea. It will be loaded onto a truck or a container depending on the size of the order. The shipment will be monitored closely to ensure the timely and safe delivery of the Vibratory Road Roller.



FAQ:

Q: What is the Brand Name of this product?

A: The Brand Name of this product is WORLD WEA.

Q: What is the Model Number of this product?

A: The Model Number of this product is RC10H.

Q: Where is this product manufactured?

A: This product is manufactured in China.

Q: What is the Minimum Order Quantity of this product?

A: The Minimum Order Quantity of this product is 1.

Q: What is the price range of this product?

A: The price range of this product is $43000-$52000.
