Product Details:
|
| Condition: | New | Operating Weight (kg): | 14000kg |
|---|---|---|---|
| Rolling Width(mm): | 2130mm | Overall Dimensions L W H: | 6140×2280× 3080 Mm |
| Highlight: | Double Drum Vibratory Road Roller,Heavy Duty Walk Behind Vibratory Roller,Heavy Duty Vibratory Road Roller |
||
Main features
Heavy duty vibratory rollers effect powerful centrifugal force and great static linear load, They are suitable for non-cohesive materials, such as sandy soil, gravel, crushed stones, rock fillings and slightly cohesive soil, gravel, crushed stones, rock fillings and slightly cohesive soils, designed for large foundation constructions such as high-class highways, mines, airports, harbors, railways and industrial areas etc.
Mechanical travel drive, double amplitude, hydraulic vibration and steering with optimal function/price ratio and reliable performance.

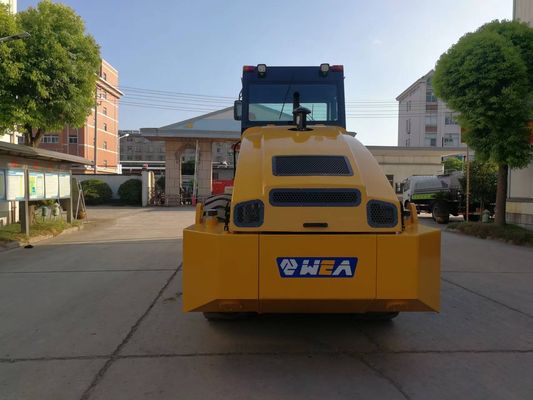

RC214
Main Features
Product Paremeters
| Model | RC214 | |
| Operating weight | 14000 | kg |
| Diameter of vibrating drum | φ1500 | mm |
| Rolling width | 2130 | mm |
| Activating force | 295/145 | KN |
| Vibration frequency | 30 | Hz |
| Theoretical amplitude of vibration | 1.8/0.9 | mm |
| Moving speed Range I II III | 2.0/5.0/10.5 | km/h |
| backward I II | 2.0/5.0 | |
| Gradeability | 30% | |
| Diesel engine model | WP4G110E221 | |
| Rated rotation speed | 2000 | r/min |
| Rated power | 82 | kw |
| Overall dimensions L W H | 6140×2280× 3080 | mm |
