Product Details:
|
| Condition: | New | Operating Weight (kg): | 4000kg |
|---|---|---|---|
| Rolling Width(mm): | 1300mm | Centrifugal Force(KN): | 39 |
| Operation Weight(T): | 3,4,6 | Vibration Frequency(Hz): | 50 |
| High Light: | 4000kg Vibratory Road Roller,4000kg Roller Road Machine,Variable Speed Vibratory Road Roller |
||
Main features

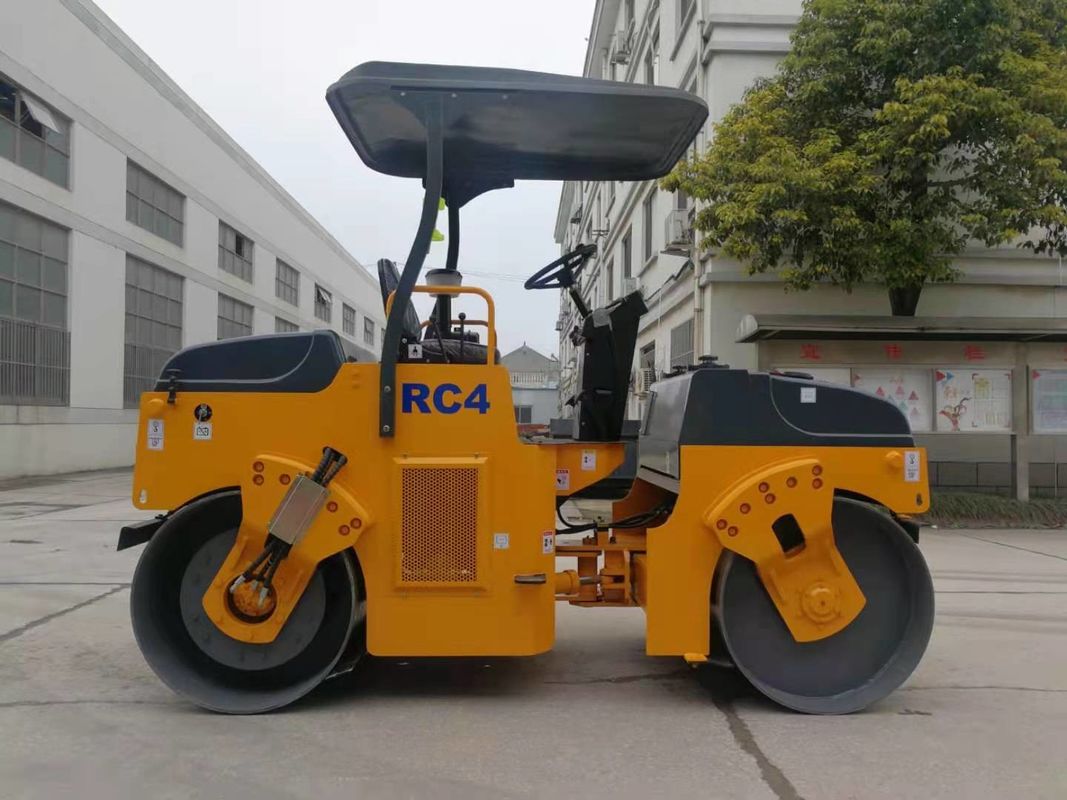

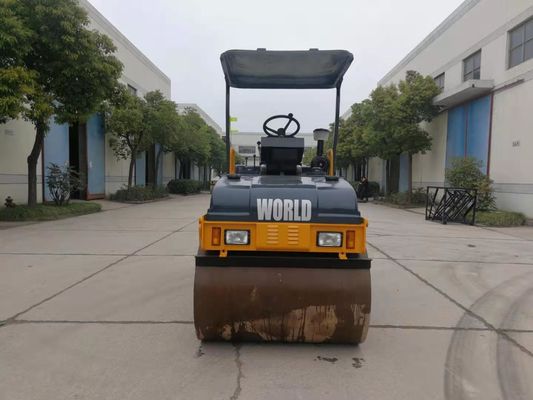

RC3, RC4, RC6 & RC10J
Application: Road, municipal administration, gym and other industrial areas.
Main features:
This machine adopts hydraulic steering, hydraulic vibration, which can quickly meet the requirements of the compaction degree.
This machine adopts advanced hinged frame with beautiful appearance, comfortable cabin, flexible steering, good stability and flat rolling.
The front and back rollers are equipped with mud scrapers and sprinklers.
Operation weight is 3 tons, 4 tons, 6 tons and 10 tons respectively.
Product Paremeters
| Specifications | RC3 | RC4 | RC6 |
| Operation weight(T) | 3 | 4 | 6 |
| Diameter of vibrating drum(mm) | 800 | 860 | 950 |
| Rolling width(mm) | 1000 | 1300 | 1320 |
| Static Linear pressure(N/CM) | 162 | 232.4 | |
| Centrifugal force(KN) | 29.6 | 39 | 55 |
| Vibration frequency(Hz) | 50 | 50 | 46 |
| Theoretical amplitude of vibration(mm) | 0.58 | 0.5 | 0.62 |
| Moving speed range I(KM/h) | 2 | 2.5 | 2.5 |
| Moving speed range II | 5.86 | 7.5 | 7.5 |
| Moving speed range III | / | / | / |
| Grade ability | ≧20% | 20% | ≧20% |
| Diesel engine model | N358Q | ZN490Q | 495AY |
| Rated Speed | 2400 | 2600 | 2000 |
| Rated power(KW) | 21 | 33.5 | 35.3 |
| Overall Dimensions(mm) LXWXH |
2030x1300 x2350 |
3180x1460 X2560 |
3660x1550 X2630 |
