Product Details:
|
| Machine Weight: | 23500kg | Dozing Capacity: | 6.4m3 |
|---|---|---|---|
| Model Number: | B165, B220, B320 | Moving Type: | Crawler Bulldozer |
| Dimension(Long * Breadth * High): | 5492×3726×3742 | Condition: | New |
| High Light: | 220hp Heavy Equipment Dozer,220hp Caterpillar Electric Dozer,D7 Reliable Caterpillar Electric Dozer |
||
Main Features

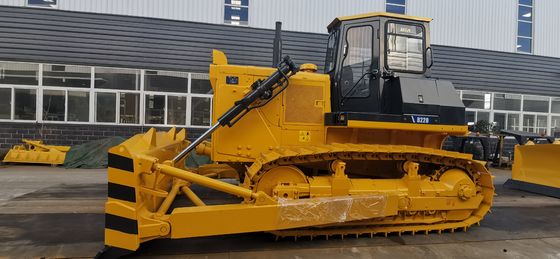

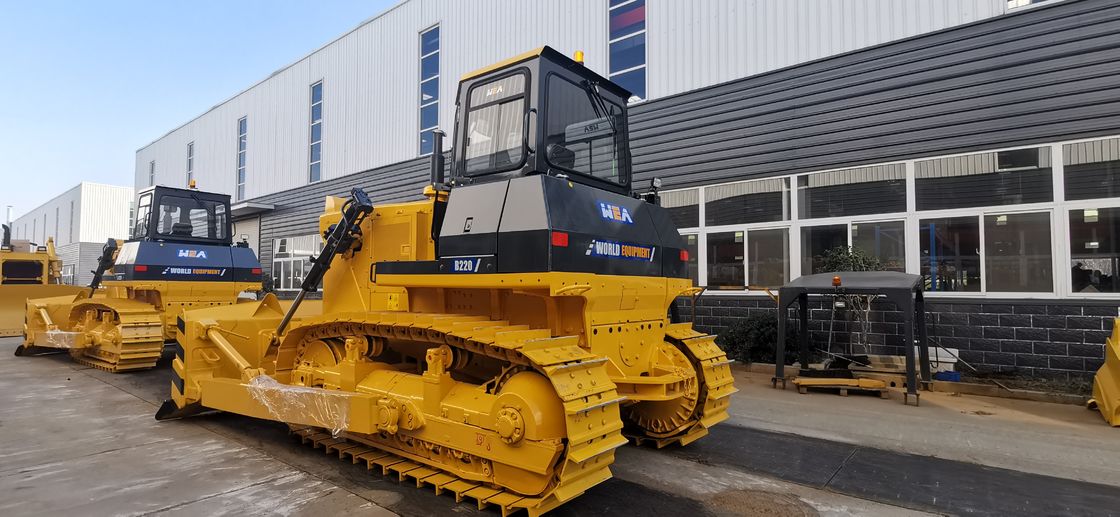

1. 220 hp Bulldozer (220 hp dozer) has reasonable structure, advanced performance, advanced technology.
2. High engine power, large output torque, low oil-consumption, reliable.
3. Hydraulic transmission, automatic speed regulation, gear shifting without stopping the machine.
4. Manipulation design of 220 hp Bulldozer is people-oriented. Handle distributes both sides, which makes it more convenient to operate.
5. Originate equipped with ROPS-FOPS device.
6. The new-style three-stage alarm device is mechanically integrated, electronic monitoring instrument shows three-stage alarm.
| Model | B165 | B220 | B320 |
| Engine Rated power(kw/rpm) | 131/1850 kw/rpm | 175/1800 | 257/2000 |
| Displacement(L) | 9.726 | 14.01 | 14.01 |
| Max.torque(N.m/rpm) | 830/1000-1200 | 1030/1250 | 1440/1400 |
| Operating weight(Kg) | 17000 | 23500 | 37200 |
| Dimension(no ripper)(mm) | 5140×3388×3032 | 5492×3726×3742 | 6885×4128×3645 |
| Min ground clearance(mm) | 405 | 405 | 500 |
| Track shoe width(mm) | 510 | 560/610/660 | 560/660/760 |
| Dozing capacity( m³) | 4.55 | 6.4 | 10 |
| Max drop below ground(mm) | 540 | 540 | 560 |
| Max pressure(MPa) | 14 | 14 | 14 |
| Max tractor force(KN) | 146 | 202 | 280 |
| Grade ability(°) | 30 | 30 | 30 |
| Forward(km/h) | 3.29/5.82/9.63 | 3.6/6.5/11.2 | 3.6/6.6/11.5 |
| Reverse(km/h) | 4.28/7.59/12.53 | 4.3/7.7/13.2 | 4.4/7.8/13.5 |
