2800mm Crawler Mini Dumper 4wd Palm Oil Dumper With Scissior Lift

Certification
China World Equipment (Changzhou) Co., Ltd. certification
China World Equipment (Changzhou) Co., Ltd. certification
Customer Reviews
very Satisfied

—— Generoso Reyes

Good Supplier,good service

—— SERGIO VIANA

I'm Online Chat Now

2800mm Crawler Mini Dumper 4wd Palm Oil Dumper With Scissior Lift

2800mm Crawler Mini Dumper 4wd Palm Oil Dumper With Scissior Lift
2800mm Crawler Mini Dumper 4wd Palm Oil Dumper With Scissior Lift 2800mm Crawler Mini Dumper 4wd Palm Oil Dumper With Scissior Lift 2800mm Crawler Mini Dumper 4wd Palm Oil Dumper With Scissior Lift

Large Image :  2800mm Crawler Mini Dumper 4wd Palm Oil Dumper With Scissior Lift

Product Details:
Place of Origin: CHINA
Brand Name: WEA
Model Number: WEA-C3500
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: usd9800/unit-usd12500/unit
Packaging Details: in container
Delivery Time: 35 working days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 500 units per year

2800mm Crawler Mini Dumper 4wd Palm Oil Dumper With Scissior Lift

Description
Engine: CHANGCHAI ZN390 Rated Power: 35HP
Bucket Size: 2800*1600*720MM Lifting Weight: 2000kg
Lifting Height: 2.3M Payload: 3000kg
Start Way: Electric Start Minimum Turning Radius: 2.6M
Optional: PTO
High Light:

2800mm Crawler Mini Dumper

,

Scissior Lift Crawler Mini Dumper

Product Description
Mini Dumper Crawler 4wd Palm Oil Dumper With Scissior Lift


Product Specification

1. Simple structure, smooth transmission and labor-saving operation

2. It adopts a domestic famous brand single-cylinder power system, which has large power, low fuel consumption and easy operation and

maintenance.



3. The turning radius is small and the maneuver is flexible, especially suitable for narrow fields and complex terrain.



Main features
1. Simple structure, smooth transmission and labor-saving operation
2. Famous brand single-cylinder engine with large power, low fuel consumption and easy operation and maintenance.
3. Electric start, centralized handle, easy to operation
4. The turning radius is small and the maneuver is flexible, especially suitable for narrow fields and complex terrain.
5. Specially designed for palm oil plantations.

Product Paremeters

MODEL

WEA-C2000

WEA-C3500

DIMENSION (mm)

3160*1550*2170mm

4270*1680*2240mm

BUCKET SIZE (mm)

1780*1500*550mm

2800*1600*720mm

ENGINE

GOLDEN FISH RD170N  17HP/2400RP

CHANGCHAI ZN390 35HP/2600RPM

TRANSMISSION

21-1200

21-1200

TRACK SIZE

350X90X46

400X90X56

TRACK MATERIAL

AGRICULTURAL RUBBER

ENGINEERING RUBBER

ROLLER TYPE

STEEL--6X180

STEEL--8X180

CURB WEIGHT(kg)

1540kg

2400kg

PAYLOAD (kg)

1500kg

3000kg

START WAY

ELECTRIC START

ELECTRIC START

ACCELERATOR TYPE

PEDAL+HAND CONTROL

PEDAL

CLUTCH TYPE

PEDAL+ROD



STEERING DEVICE

TIE ROD TYPE,CLUTCH BRAKE PAD STEERING

TIE ROD TYPE,CLUTCH BRAKE PAD STEERING

MINIMUM TURNING RADIUS

2m

2.6m

SHIFT

3+1 HIGH,  LOW SPEED

3+1 HIGH,  LOW SPEED

SPEED ( Km/h )

3-15 Km/h

3-15 Km/h

GROUND CLEARANCE (mm)

250mm

250mm

DUMPING TYPE

HYDRAULIC SELF-DMPING

HYDRAULIC SELF-DMPING

LIFTING DEVICE

HYDRAULIC LIFTING

HYDRAULIC LIFTING

LIFTING HEIGHT (m)

2.2m

2.3m

LIFTING WEIGHT (kg)

1000kg

2000kg

OPTIONAL

PTO

PTO

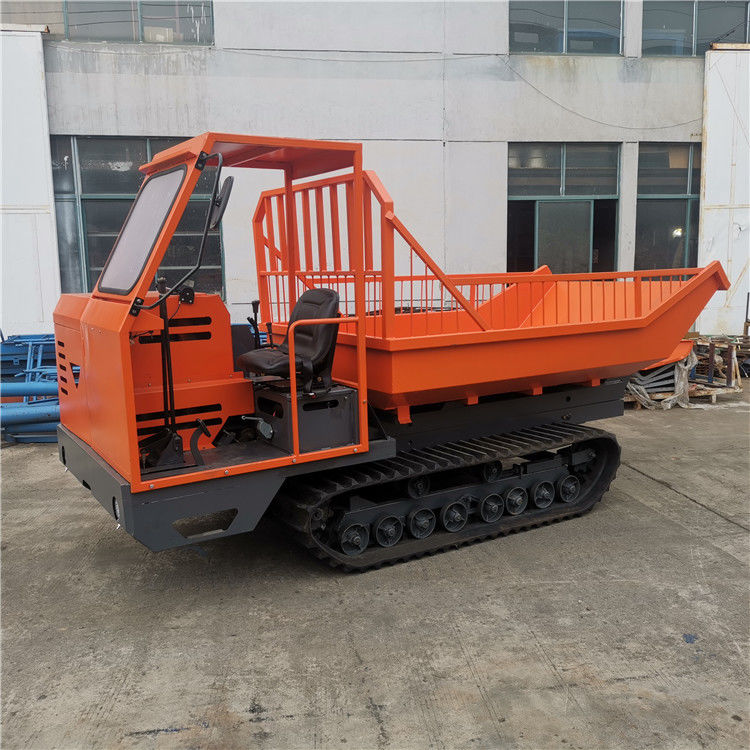

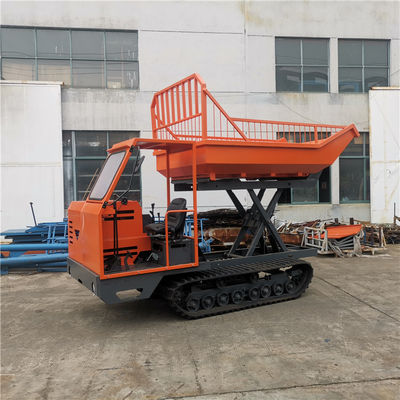

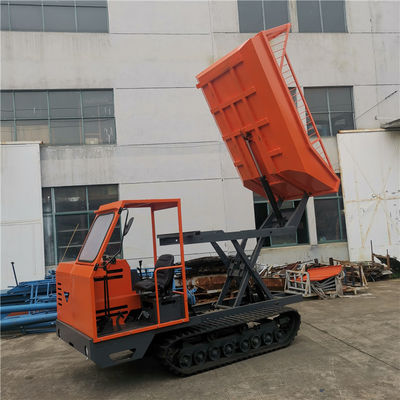

Product Photos
2800mm Crawler Mini Dumper 4wd Palm Oil Dumper With Scissior Lift 0




CUSTOMER VISIT

2800mm Crawler Mini Dumper 4wd Palm Oil Dumper With Scissior Lift 1
Shipping &Package
2800mm Crawler Mini Dumper 4wd Palm Oil Dumper With Scissior Lift 2
Visit Palm Oil Plantations
2800mm Crawler Mini Dumper 4wd Palm Oil Dumper With Scissior Lift 3

Photos from palm oil farmers

2800mm Crawler Mini Dumper 4wd Palm Oil Dumper With Scissior Lift 4

FAQ

Q1: Are we factory or only dealer?
Q1: We're surely manufacturer located in Jiangsu province, near shanghai, very welcome you to visit our factory

Q2:.How long will take to delivery the goods after placing an order?
A2: It will take about 35 working days after getting the deposit

Q3.If our machines have any problems, When will your side can reply to us?
A3:We will solve your problems immediately once get your message. Usually it will take 1~2 hours to give you the solution or
explanation.

Q4.What kind of good policy your can supply if we want to be your distributor?
A4: Special discount and protection of sales area can be provided to your distributor.

Q5:.What kind terms of payment can be accepted?
A5:For terms of payment, LC,T/T, D/, Western Union can be accepted.
