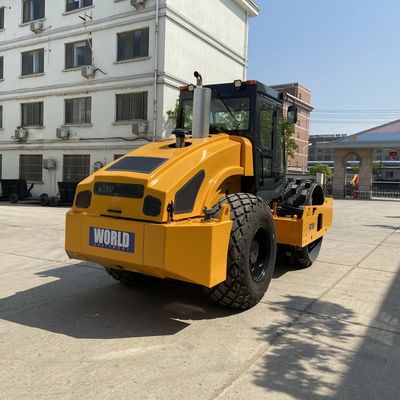

Product Details:
|
| Condition: | New | Operating Weight (kg): | 12000 |
|---|---|---|---|
| Rolling Width (mm): | 2130 | Drum Diameter （mm） : | 1500 |
| Vibration Frequency (Hz): | 30/35 | Engine Model: | 6BT5.9-C150 |
| Engine Power/speed （kW/rpm）: | 110/2300 | Overall Dimensions (mm)（L*W*H）: | 6140×2280×3050 |
| Warranty: | 1 Year | After-sales Service Provided: | Online Support |
| Application: | Road Roller | Material: | Steel |
| High Light: | 12ton Vibration Road Roller Machine,12ton Vibratory Double Drum Roller,Electronic Vibratory Double Drum Roller |
||
Applications
Compacting the foundation of large infrastructure projects, such as highway, dam, railway, airport, also non-cohesive and semi-cohesive materials, such as sand, gravel, macadam, rock fill.
Main features
1. Hydraulic front and rear drum drive, multiple infinitely variable speeds, strong grade-ability.
2. Hydraulic vibration, electronic controlled delayed starting of vibration, great exciting force with high compacting efficiency.
3. Hydraulic steering, articulated frame with flexible steering and operation.
4. Adopt specific drive axle with excellent drive performance.
5. Hydraulic service brake, electronic controlled parking brake.
6. Rear engine cover can be turned up for big angle for convenient maintenance.
7. Drive and vibration system are equipped with imported famous brand hydraulic components with reliable performance.
8. Tires with different tread patterns are optional.
9. Other brand engines are optional.
10. Standard equipped with cabin.
Product Paremeters
|
model
|
RC10H | |||
| Operating weight | 12000kg | Engine model | 6BT5.9-C150 | Cummins |
| Rolling width | 2130 mm | Drive axle | CYQ1651 | XUGONG |
| Drum diameter (mm) | 1500mm | Tire | 23.1-26 | CHAOYANG |
| Vibration frequency (Hz) | 30/35 | Vibration pump | MPV046 | Danfoss |
| Theoretical amplitude of vibration (mm) | 1.9/0.9 | Vibration motor | MMF044 | Danfoss |
| Exciting force (kN) | 280/180 | Driving pump | 90R075 | Danfoss |
| Static linear load(N/cm) | 300 | Steel wheel motor | 90K55 | Danfoss |
| Travel speed (km/h) | 0～5.5 ,0～10 | Driving axle motor | H1B060 | Danfoss |
| Minimum turning radius(Outside)mm | 6400 mm | Enginepower/speed(kW/rpm) |
110/2300 |
|
| Steering angle | ± 35° |
Overall dimensions (mm)(L*W*H) |
6140×2280×3050 |
|
| Oscillation angle | ± 10 | |||
