Heavy Equipment Dozer

Heavy Equipment Dozer
Heavy Equipment Dozer Heavy Equipment Dozer

Large Image :  Heavy Equipment Dozer

Product Details:
Place of Origin: CHINA
Brand Name: WEA
Model Number: B320
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: usd106000/unit-usd115000/unit
Packaging Details: 40FR
Delivery Time: 35 working days
Supply Ability: 500 units per year

Heavy Equipment Dozer

Description
Machine Weight: 37200kg Dozing Capacity: 10m3
Model Number: B165, B220, B320 Moving Type: Crawler Bulldozer
Dimension(Long * Breadth * High): 6885×4128×3645mm Condition: New
Highlight:

big horse Heavy Equipment Dozer

,

angle balde bullDozer

,

crawler type bullDozer

Product Description
China WORLD top brand bullDozer crawler type big horse Dozer equal to CAT D8 Bulldozer angle balde
Product Overview

B320

Main Features
1. 320 hp Bulldozer (320 hp dozer) has high engine power, large output torque, low oil-consumption, reliable.
2. Hydraulic transmission, automatic speed regulation, gear shifting without stopping the machine.
3. Bulldozing working equipment can lift and tilt, adopting hydraulically servo controlling, which makes it easier to control. High-strength and corrosion-resistant blade possess high loading capacity and high wear-resistance.
4. 320 hp Bulldozer the new-style steering hydraulic-operated control valve makes it more convenient to control, reduces the labor intensity, and improves efficiency.
5. The novel hexagon cabin, a broader vision, better ventilation, better sealing effect.
6. Many variants such as pipe layer.
7. Similar to CAT D8 bulldozer.


Product Parameters
ModelB165B220B320
Engine Rated power(kw/rpm)131/1850 kw/rpm175/1800257/2000
Displacement(L)9.72614.0114.01
Max.torque(N.m/rpm)830/1000-12001030/12501440/1400
Operating weight(Kg)170002350037200
Dimension(no ripper)(mm)5140×3388×30325492×3726×37426885×4128×3645
Min ground clearance(mm)405405500
Track shoe width(mm)510560/610/660560/660/760
Dozing capacity( m³)4.556.410
Max drop below ground(mm)540540560
Max pressure(MPa)141414
Max tractor force(KN)146202280
Grade ability(°)303030
Forward(km/h)3.29/5.82/9.633.6/6.5/11.23.6/6.6/11.5
Reverse(km/h)4.28/7.59/12.534.3/7.7/13.24.4/7.8/13.5

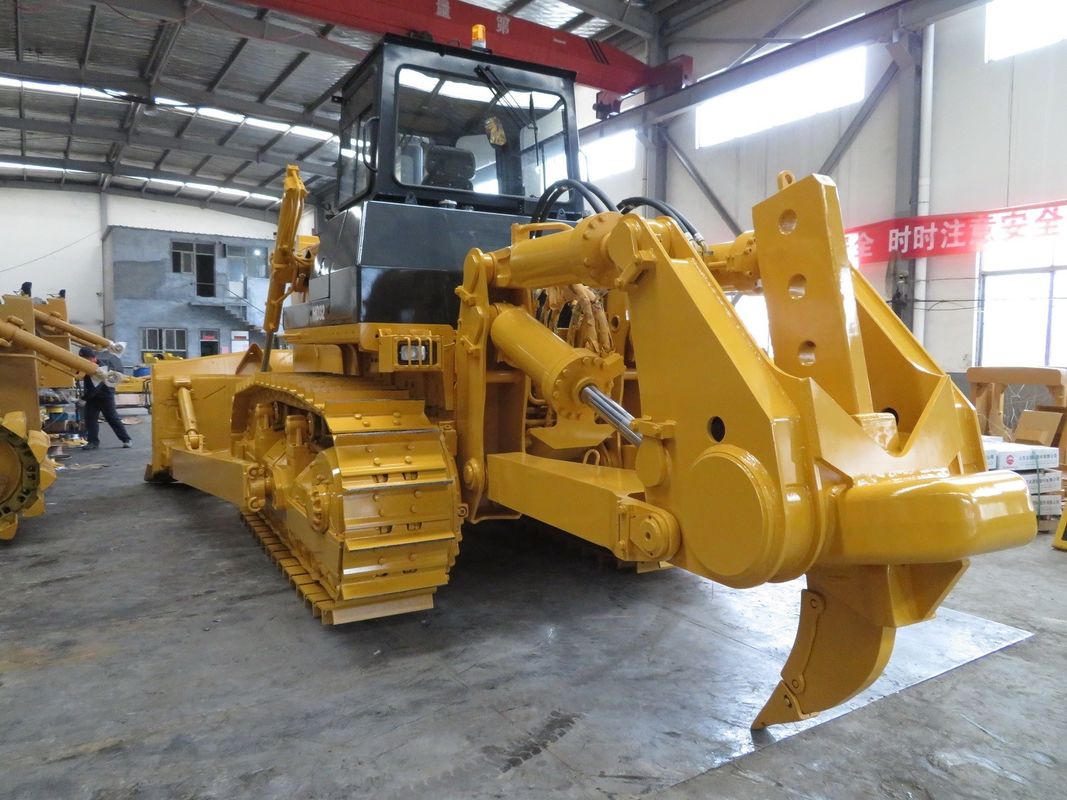

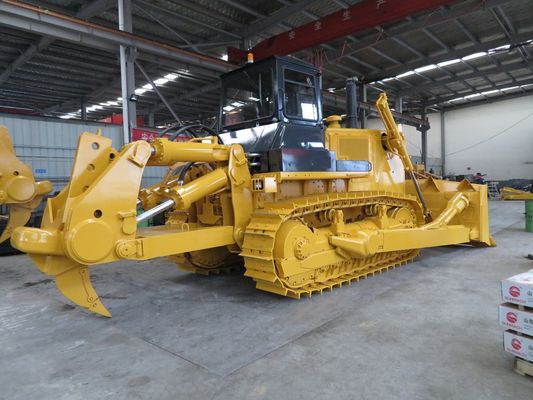

Product Photos
Heavy Equipment Dozer 0
CABIN INSDE
Heavy Equipment Dozer 1

CABIN
Heavy Equipment Dozer 2

OPERATOR SEAT
Heavy Equipment Dozer 3

PRODUCT CONFIGURATION
TORQUE CONVENTOR
Heavy Equipment Dozer 4

ICARRIER
Heavy Equipment Dozer 5

SUPPORT
Heavy Equipment Dozer 6

SALES AND SERVICE NETWORK
Heavy Equipment Dozer 7


Heavy Equipment Dozer 8
