35hp Crawler Mini Dumper

35hp Crawler Mini Dumper
35hp Crawler Mini Dumper 35hp Crawler Mini Dumper 35hp Crawler Mini Dumper 35hp Crawler Mini Dumper 35hp Crawler Mini Dumper

Large Image :  35hp Crawler Mini Dumper

Product Details:
Place of Origin: CHINA
Brand Name: WEA
Model Number: WEA-C3500
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: usd9800/unit-usd12500/unit
Packaging Details: in container
Delivery Time: 35 working days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 500 units per year

35hp Crawler Mini Dumper

Description
Engine: CHANGCHAI ZN390 Rated Power: 35HP
Bucket Size: 2800*1600*720MM Lifting Weight: 2000kg
Lifting Height: 2.3M Payload: 3000kg
Start Way: Electric Start Minimum Turning Radius: 2.6M
Optional: PTO
High Light:

35hp Crawler Mini Dumper

,

Self Propelled Crawler Mini Dumper

,

35hp Mini Crawler Dumper

Product Description
Self-Propelled Transporter Hydraulic Crawler Dumper WEA-C3500 used for palm oil plantations with 35hp


Product Specification

All terrain vehicle developed for working in peat, soft, wet soils and hilly conditions

Main features
1. Simple structure, smooth transmission and labor-saving operation
2. Famous brand single-cylinder engine with large power, low fuel consumption and easy operation and maintenance.
3. Electric start, centralized handle, easy to operation
4. The turning radius is small and the maneuver is flexible, especially suitable for narrow fields and complex terrain.
5. Specially designed for palm oil plantations.

Product Paremeters

MODEL

WEA-C2000

WEA-C3500

DIMENSION (mm)

3160*1550*2170mm

4270*1680*2240mm

BUCKET SIZE (mm)

1780*1500*550mm

2800*1600*720mm

ENGINE

GOLDEN FISH RD170N  17HP/2400RP

CHANGCHAI ZN390 35HP/2600RPM

TRANSMISSION

21-1200

21-1200

TRACK SIZE

350X90X46

400X90X56

TRACK MATERIAL

AGRICULTURAL RUBBER

ENGINEERING RUBBER

ROLLER TYPE

STEEL--6X180

STEEL--8X180

CURB WEIGHT(kg)

1540kg

2400kg

PAYLOAD (kg)

1500kg

3000kg

START WAY

ELECTRIC START

ELECTRIC START

ACCELERATOR TYPE

PEDAL+HAND CONTROL

PEDAL

CLUTCH TYPE

PEDAL+ROD



STEERING DEVICE

TIE ROD TYPE,CLUTCH BRAKE PAD STEERING

TIE ROD TYPE,CLUTCH BRAKE PAD STEERING

MINIMUM TURNING RADIUS

2m

2.6m

SHIFT

3+1 HIGH,  LOW SPEED

3+1 HIGH,  LOW SPEED

SPEED ( Km/h )

3-15 Km/h

3-15 Km/h

GROUND CLEARANCE (mm)

250mm

250mm

DUMPING TYPE

HYDRAULIC SELF-DMPING

HYDRAULIC SELF-DMPING

LIFTING DEVICE

HYDRAULIC LIFTING

HYDRAULIC LIFTING

LIFTING HEIGHT (m)

2.2m

2.3m

LIFTING WEIGHT (kg)

1000kg

2000kg

OPTIONAL

PTO

PTO

Product Photos
DRIVERLESS

35hp Crawler Mini Dumper 0

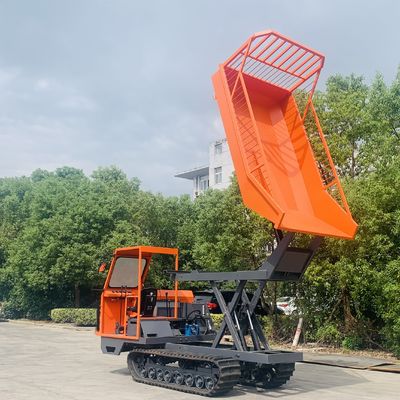

HYDRAULIC LIFTING
35hp Crawler Mini Dumper 1
HYDRAULIC SELF-DUMPING

35hp Crawler Mini Dumper 2
Product Configuration
1. CHANGCHAI high power engine




35hp Crawler Mini Dumper 3

2. Rubber Track
35hp Crawler Mini Dumper 4
3. Transfer Case

35hp Crawler Mini Dumper 5


RECOMMEND SIMILAR PRODUCTS

WEA08 MODEL


35hp Crawler Mini Dumper 6
WEA18 MODEL
35hp Crawler Mini Dumper 7
WEA35 MODEL

35hp Crawler Mini Dumper 8

CUSTOMER VISIT

35hp Crawler Mini Dumper 9
Shipping &Package
35hp Crawler Mini Dumper 10
Visit Palm Oil Plantations
35hp Crawler Mini Dumper 11

Photos from palm oil farmers

35hp Crawler Mini Dumper 12

FAQ

Q1: Are we factory or only dealer?
Q1: We're surely manufacturer located in Jiangsu province, near shanghai, very welcome you to visit our factory

Q2:.How long will take to delivery the goods after placing an order?
A2: It will take about 35 working days after getting the deposit

Q3.If our machines have any problems, When will your side can reply to us?
A3:We will solve your problems immediately once get your message. Usually it will take 1~2 hours to give you the solution or
explanation.

Q4.What kind of good policy your can supply if we want to be your distributor?
A4: Special discount and protection of sales area can be provided to your distributor.

Q5:.What kind terms of payment can be accepted?
A5:For terms of payment, LC,T/T, D/, Western Union can be accepted.
