Product Details:
|
| Condition: | New | Centrifugal Forceeight: | 70kn |
|---|---|---|---|
| Operating Mass: | 7000kg | Turning Radius: | 6000mm |
| Wheelbase: | 2750mm | ||
| High Light: | Double Amplitude Small Vibratory Roller,Hydraulic Vibration Small Road Roller,Double Amplitude Small Road Roller |
||

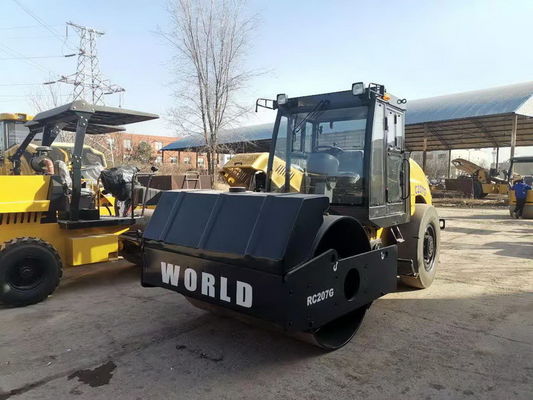

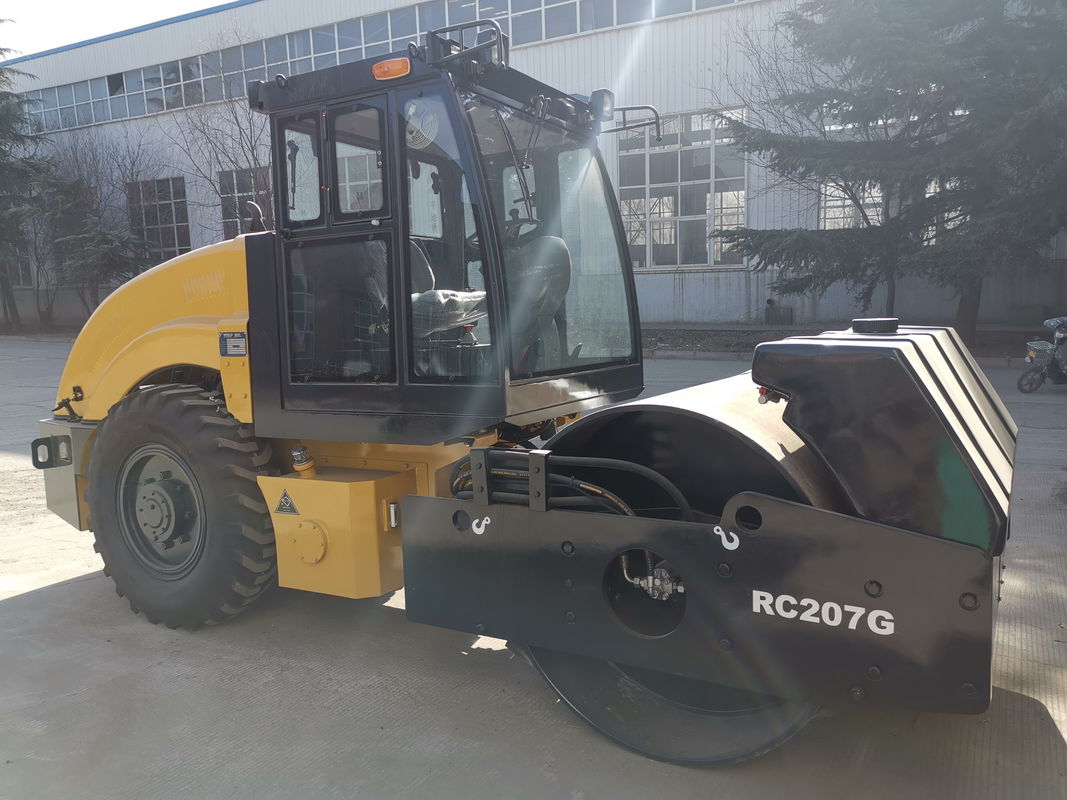

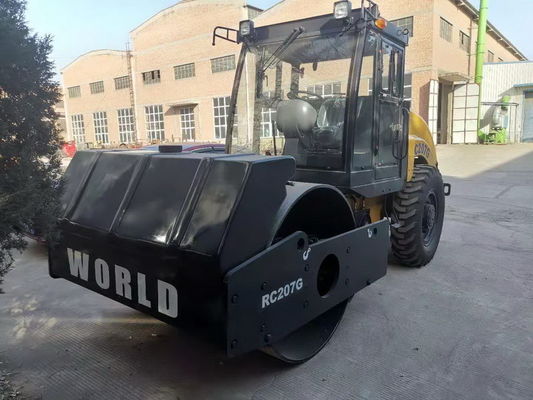

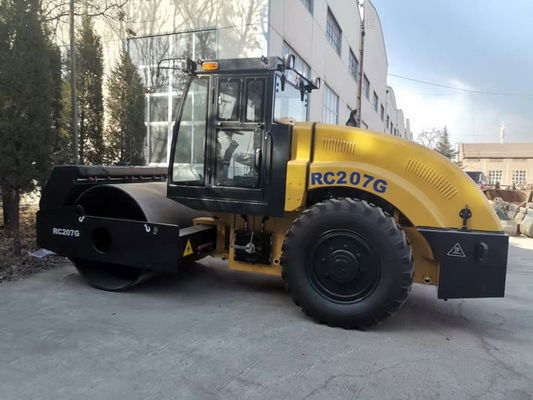

RC207G
Main features
1. Mechanical travel drive, double amplitude, hydraulic vibration and steering with optimal function/price ratio and reliable performance.
2. Reliable diesel engine for convenient operation and maintenance.
3. Two sets of brake devices, a hand brake and foot pedal brake, assures the machine's safety and dependability.
4. Spacious and comfortable cab mounted on top quality rubber damping elements.
5. World advanced technology is adopted for the hydraulic vibration technology, high in reliability, simple and convenient in maintenance, and low in cost.
6. Equipped with padfoot or removal padfoot as option..
Main specification
| Model | RC207G | |
| Operating mass | Kg | 7000 |
| Static linear load | N/cm | 215 |
| Vibration amplitude | Hz | 43 |
| Vibration fraquency | mm | 0.4 |
| Centrifugal force | kN | 70 |
| Travel speed | Hz | |
| 1st gear | 2.2 | |
| 2nd gear | 4.7 | |
| 3rd gear | 15 | |
| Grade ability | % | 25 |
| Turning angle | 35 | |
| Ground clearance | mm | 320 |
| Bectrical voRCage | v | 24 |
| Turning radius | mm | 6000 |
| Vertical oascill ation | 8 | |
| Type size | 12.00-24-16 | |
| Overall length | mm | 5120 |
| Overall width | mm | 1940 |
| Overall hieght | mm | 2600 |
| Vibration round width | mm | 1700 |
| Drum diameter | mm | 1400 |
| Drum rim thickness | mm | 24 |
| Wheelbase | mm | 2750 |
| Diesel model | 498BG | |
| Diesel power | kW | 35 |
| Diesel speed | r/min | 2200 |
After sales service term:
1. Guaranty time: 12 months (calculating from the date the machine leave the port of loading) or 1200 working hours, whichever comes first.
2. Provide maintenance instruction, parts list, packing list, accessories and tools free of charge when send the machine to you.
3. Provide the parts free of charge in the guaranty time if the parts cannot work well.
4. Excess the guaranty; you can easily to buy from us with cost price anytime.
