Product Details:
|
| Machine Weight: | 17500KG | Moving Type: | Crawler Excavator |
|---|---|---|---|
| Bucket Capacity: | 0.8m3 | Condition: | New |
| Swing Spee: | 12rpm | Warranty: | 1 Year Or 2000 Working Hours |
| Engine: | Cummins | Color: | Yellow |
| Origin: | China Mailand | Type: | Hydraulic Crwaler Excavator |
| After-sales Service Provided: | Online Support | ||
| High Light: | Earthmoving Hydraulic Crawler Excavator,Earthmoving Long Boom Excavator,LCD Display Long Boom Excavator |
||
Main Features
1. The breaking pipeline equipped improve the working performance .

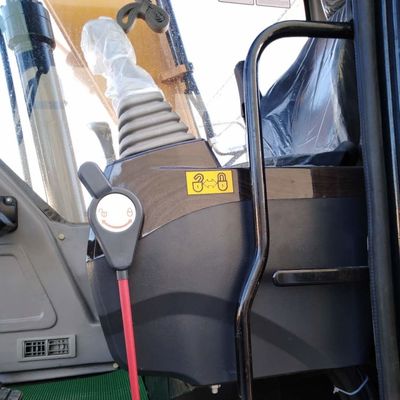

2. Installed luxury full seal cabin with A/C and LCD display and LED lights etc.
3. The humanized design , ensure the machine can comfortable operation and convenient maintenance.
4. The professional structural parts and working mechanism , ensure the machine has reliability and durability .
5. The breaking pipeline equipped improve the working performance .
| ENGINE | |
| Emission Standard | Tier 3/ Stage III |
| Make | CUMMINS |
| Model | QSF3.8 |
| Power /Rotation speed | 93kw(127HP)@2200rpm |
| Number of cylinder | 4 |
| TRACK SYSTEM | |
| Maximum Travel speed | 3/4.2km/h |
| Width of track shoe | 600mm |
| Number of track shoe per side | 47pcs |
| Number of upper roller per side | 2 |
| Number of bottom roller per side | 7 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity | 0.8m³ |
| Swing speed | 12rpm |
| Maximum Grade ability | 30° |
| Maximum Bucket digging force | 98KN |
| Maximum Arm digging force | 68KN |
| Hydraulic system pressure | 32Mpa |
| Machine weight | 17500kg |
| Fuel tank | 310L |
| Hydraulic oil tank | 195L |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 8540mm*2720mm*2920mm |
| Height of cabin | 2920mm |
| Track length on ground(Axle base) | 3200mm |
| Track gauge | 2120mm |
| Minimum Ground clearance | 480mm |
| Swing radius at tail | 2430mm |
| WORKING RANGE | |
| Maximum Digging height | 9430mm |
| Maximum Dumping height | 6960mm |
| Maximum Digging depth | 5975mm |
| Maximum Vertical digging depth | 5630mm |
| Maximum Digging radius | 8985mm |
| Minimum swing radius | 2725mm |

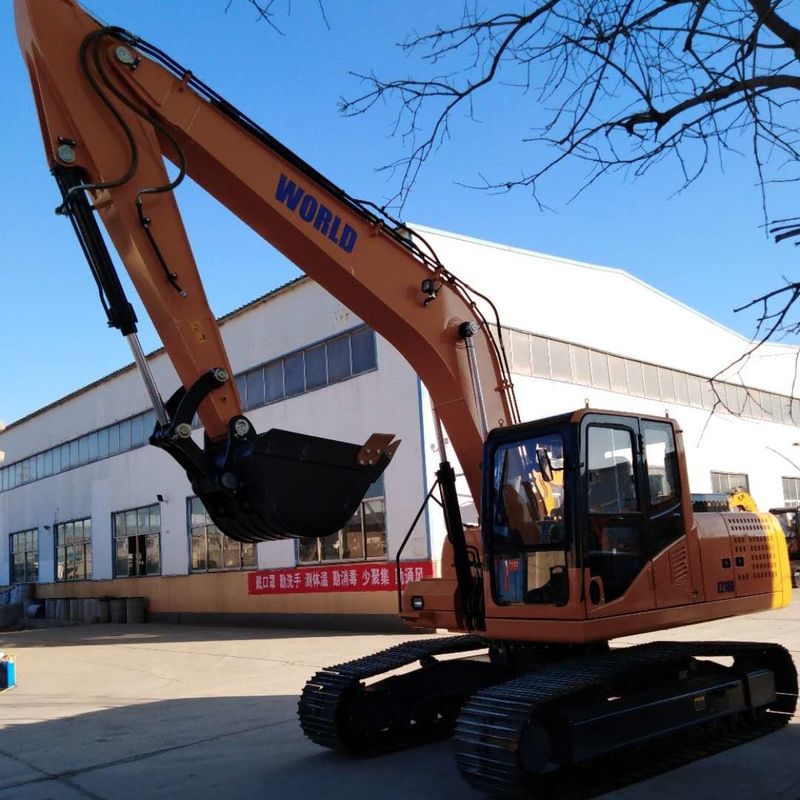

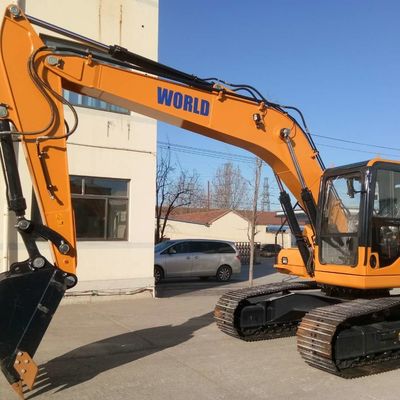

Product Photos
