Product Details:
|
| Product Name: | Telescopic Handler Forklift | Rated Load: | 5000KG |
|---|---|---|---|
| Max.Lifting Height: | 7000mm | Engine: | Dongfeng Cummins |
| Advantage: | Versatility, Stability, Maneuverability | Color: | Customsized |
| High Light: | 5ton Telescopic Handler Forklift,5ton Compact Telescopic Forklift,CE Compact Telescopic Forklift |
||

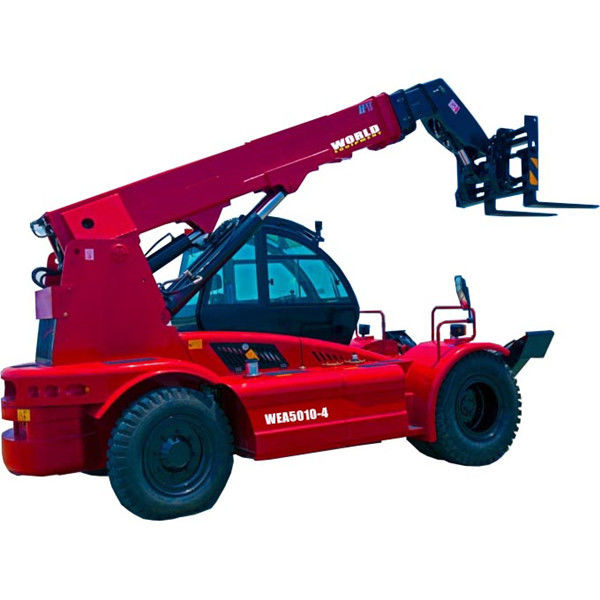

Hot Sale Telehandler 5on Telescopic Forklift Handler With CE Good Price WEA50-4
1. This telescopic forklift WEA50-4 which features the highest operation simplicity, safety and efficiency.
2. Equipped with famous brand diesel engines , with high reliability and fuel economy,low noise, low emission, it is specially designed and manufactured for the working conditions of construction machinery.
3. The power system adopts two-way vibration reduction technology, all-round elastic suspension, effectively overcome the resonance between the power system and the frame, reduce the noise and the fatigue damage of the power system.
4. Using domestic gearbox,superior performance, powerful function, fork installed to meet the requirements of various working conditions; front 2 and back 2 gears, for complex operation and frequent switching expansion arm fork installed, can effectively improve the economy and service life of the engine; electronic control shift, easy and simple operation, and effectively reduce the driver operation strength.
5. Using front wheel drive, rigid suspention, rear axle steering structure, can achieve four-wheel drive. Front axle spiral bevel gear and wheel side planetary wheel to reduce the speed and increase torque, have excellent load capacity.
| Items | Unit |
Deviation allowed |
WEA25-4 | WEA30-4 | WEA35-4 | WEA40-4 | WEA50-2 | WEA50H | ||
| 基本参数Basicparameter | Rated load | kg | - | 2500 | 3000 | 3500 | 4000 | 5000 | 5000 | |
| Load center | mm | - | 500 | 500 | 500 | 500 | 500 | 500 | ||
| Load capacity@max.Forward reach | kg | - | 1000 | 1250 | 1550 | 1800 | 1500 | 2000 | ||
| Basic boom max.Lifting height | mm | ±1.5% | 4850 | 4850 | 4850 | 4850 | 4500 | 5300 | ||
| Max.Lifting height | mm | ±1.5% | 7000 | 7000 | 7000 | 7000 | 7300 | 8800 | ||
| Max.Horizontal reach | mm | ±1.5% | 3350 | 3350 | 3350 | 3350 | 5700 | 5470 | ||
| Min.Horizontal reach | mm | ±1.5% | 930 | 930 | 930 | 930 | 1500 | 1270 | ||
| Min.Ground clearance | mm | ±1.5% | 400 | 400 | 400 | 400 | 310 | 310 | ||
| Min.Turning radius(外轮中心 outer tyre center) |
mm | ≤105% | 6200 | 6200 | 6200 | 6200 | 6800 | 6800 | ||
| Angle | Boom frame upward angle | . | ±1.0 | 60 | 60 | 60 | 60 | 43 | 60 | |
| Boom frame downward angle | . | ±1.0 | -11 | -11 | -11 | -11 | -14 | -12 | ||
| Operating weight | kg | ±5% | 8200 | 8600 | 9000 | 9440 | 13000 | 13000 | ||
| Overalldimension | Length(with fork) | mm | ±2% | 5730 | 5730 | 5730 | 5730 | 6288 | 5900 | |
| Width | mm | ±2% | 2390 | 2390 | 2390 | 2390 | 2300 | 2350 | ||
| Height | mm | ±2% | 2485 | 2485 | 2485 | 2485 | 2715 | 2655 | ||
| Wheel tread | mm | ±1% | 1870 | 1870 | 1870 | 1870 | 1638/1845 | 1638/1845 | ||
| Wheel base | mm | ±1% | 2700 | 2700 | 2700 | 2700 | 2988 | 2988 | ||
| Rated power/Rated turning speed | KWirimin | - | 60/2000 | 60/2000 | 60/2000 | 60/2000 | 74/2200 | 74/2200 | ||
| Drivingsystem | Max.Travelling speed (unloaded) | km/h | ±10% | 30 | 30 | 30 | 30 | 25 | 25 | |
| Grade ability | % | - | ≥30% | ≥30% | 230% | ≥30% | 220% | ≥20% | ||
| Tyre | Front wheel(2pcs) | - | - | 16/70-24 | 16/70-24 | 16/70-24 | 16/70-24 | 11.00-20 | 11.00-20 | |
| Rear wheel (2 pcs) | - | - | 10.00 -20-16 |
10.00 -20-16 |
10.00 -20-16 |
10.00 -20-16 |
9.00-20 | 9.00-20 | ||
| Engine | Dongfeng Cummins | 国二 National 2 |
4BTA3.9-C80II | 4BTA3.9-C80II | 4BTA3.9-C80II | 4BTA3.9-C80II | 4BTA3.9-C100II | 4BTA3.9-C100II | ||
| 国三 National 3 |
QSB3.9-C80 | QSB3.9-C80 | QSB3.9-C80 | QSB3.9-C80 | QSB3.9-C100 | QSB3.9-C100 | ||||
