Product Details:
|
| Condition: | New | Type: | Backhoe Loader |
|---|---|---|---|
| After-sales Service Provided: | Online Support | Bucket Capacity: | 1m3 |
| Engine: | YUCHAI | Rated Power: | 75kw |
| Operating Weight: | 8200kg | Color: | Yellow |
| Warranty: | 1 Year | Engine Model: | YC4A105Z-T20 |
| Dumping Height: | 2742mm | Max Digging Depth: | 4082/4500mm |
| High Light: | Excavator Backhoe Loader 2250mm,2250mm Backhoe Loader Machine,Mini Excavator Backhoe Loader |
||

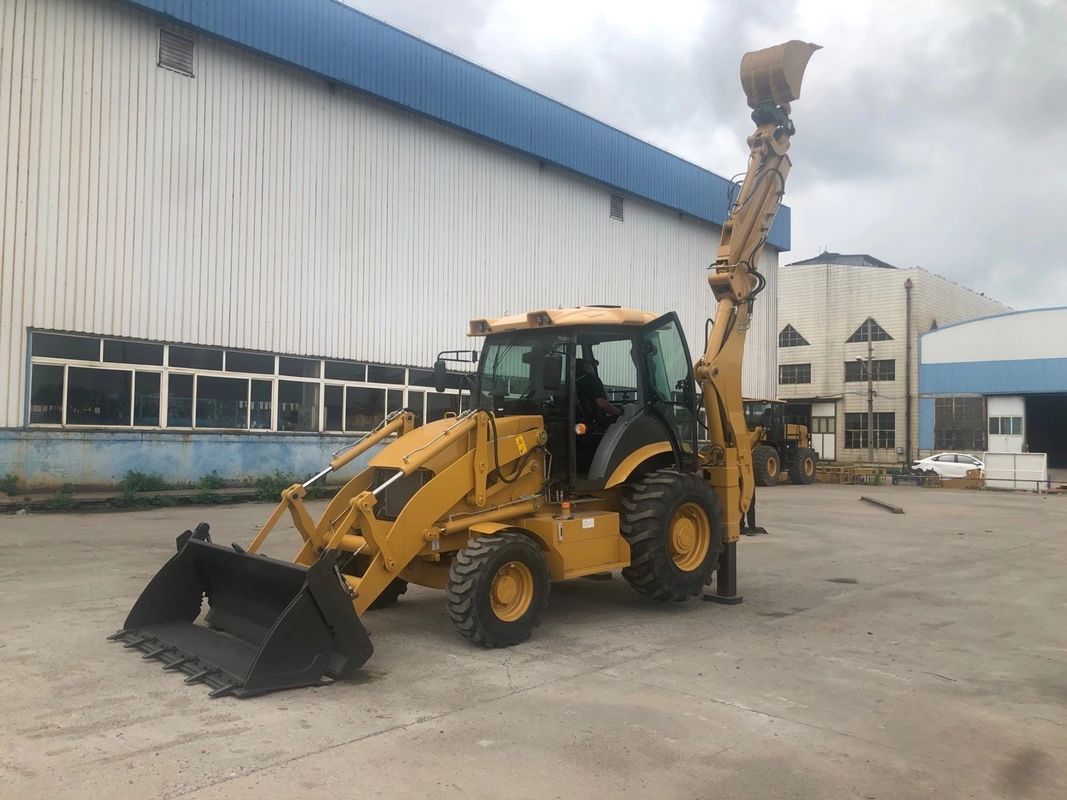

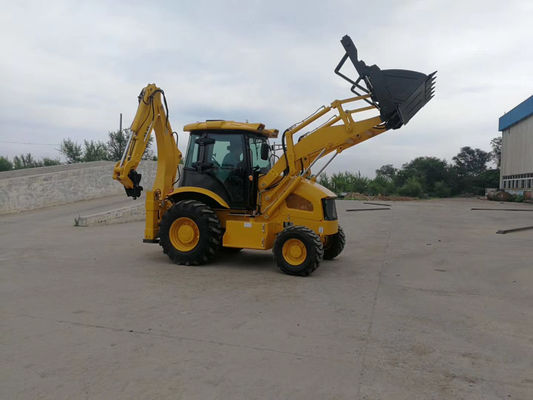

WZ30-25 BACKHOE LOADER SPECIFICATIONS
backhoe Loader is a "tractor" + excavator + loader composed of a multi-purpose, high efficiency of small construction machinery.It can carry out different operations at both ends, one end of the assembly bucket for digging operations, the other end of the assembly bucket for shoveling and loading and unloading operations. But the function of both busy is not only these, its two ends can also be replaced by different accessories, such as crushing hammer, fork, wood grabber and so on to achieve different operations. 4 wheel driving.
Product parameters
| Item | Data | Item | Date |
| Power | 75KW | Dimension | 5910*2268*3760mm |
| Bucket capacity | 1.4M3 | Bucket Dumping Height | 2742mm |
| Backhoe Capacity | 0.3M3 | Bucket Dumping Distance | 1062mm |
| Overall Operating Weight | 7460KG | Max. Pulling Force | 39KN |
| breakout force | 38kN | Tire Size | 16/70-20 |
| Wheel base | 2250mm | Total displacement | 3.9L |
| Thread | 1400mm | Swing Angle of Excavator Grab | 190° |
| Loading Lifting Capacity | 2500KG | Min. Ground Clearance | 300mm |
