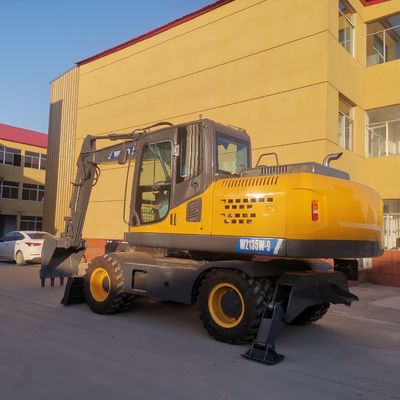

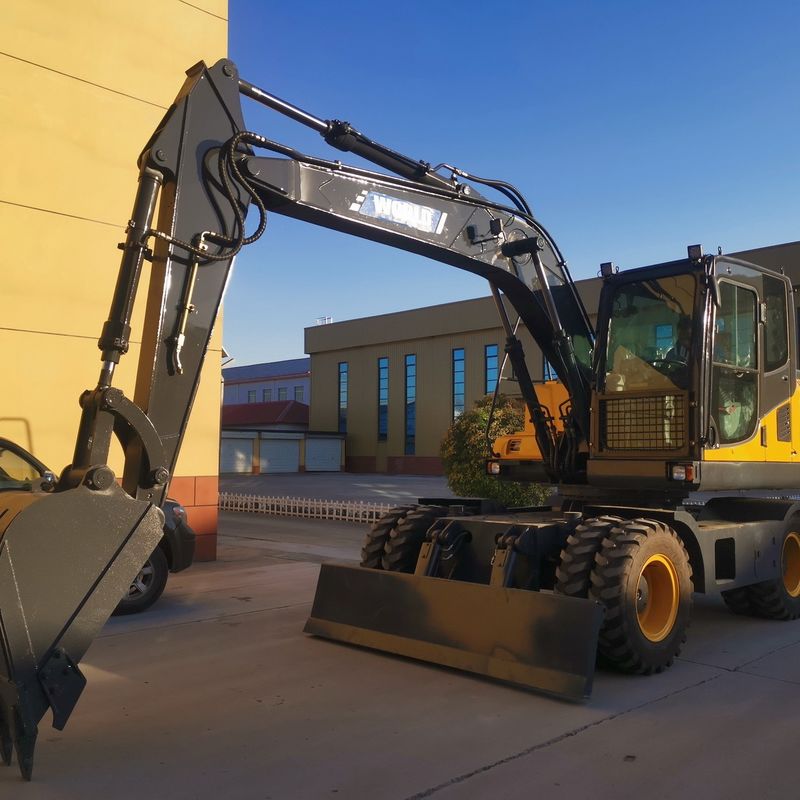

4 Cylinder Compact Mini Excavator Electric Hydraulic Excavator With Isuzu Engine

4 Cylinder Compact Mini Excavator Electric Hydraulic Excavator With Isuzu Engine
4 Cylinder Compact Mini Excavator Electric Hydraulic Excavator With Isuzu Engine 4 Cylinder Compact Mini Excavator Electric Hydraulic Excavator With Isuzu Engine 4 Cylinder Compact Mini Excavator Electric Hydraulic Excavator With Isuzu Engine

Large Image :  4 Cylinder Compact Mini Excavator Electric Hydraulic Excavator With Isuzu Engine

Product Details:
Place of Origin: CHINA
Brand Name: WEA
Model Number: W2135W-9
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: usd20000/unit-usd61000/unit
Packaging Details: in container
Delivery Time: 35 working days
Supply Ability: 500 units per year

4 Cylinder Compact Mini Excavator Electric Hydraulic Excavator With Isuzu Engine

Description
Condition: New Bucket Capacity: 0.6 M3
Moving Type: Wheel Excavator After-sales Service Provided: Online Support
Warranty: 1 Year / 2000 Working Hours Machine Weight: 14100kg
Color: Yellow Engine: YUCHAI/YC4D125
Keywords: Wheel Excevator Product Name: Wheel Excavator
Engine Power: 92kw(125HP) Type: Hydraulic Wheel Excavator,mini Wheeled Excavator,mini Farm Machinery
High Light:

4 Cylinder Compact Mini Excavator

,

4 Cylinder Electric Hydraulic Excavator

,

Isuzu Engine Electric Hydraulic Excavator

Product Description
Hydraulic Wheel Mining Excavator Digger Excavator Machine With Isuzu Engine


MAIN FEATURES

Adopted hydraulic pilot servo operation system and hydraulic oil radiator ensure the machine have high working efficiency .





TECHNICAL PARAMETERS

ENGINE
Emission Standard China Stage III
Make /Model YUCHAI/YC4D125
Power /Rotation speed 92kw(125HP)@2200rpm
Number of cylinder 4
DRIVING SYSTEM
Maximum Travel speed 25km/h
Tire model/Number of tires 9.00-20/8
Driving type Hydraulic controlling
Steering type Steering wheel
TRANSMISSION
Type Free shift(Stepless gear box)
BRAKE SYSTEM
Driving brake(Front axle) Hydraulic brake(brake caliper)
Driving brake(Rear axle) Hydraulic brake(brake caliper)
Parking brake Brake pedal lock
Emergency brake Foot brake
PERFORMANCE PARAMETER
Standard Bucket capacity 0.6m³
Swing speed 12rpm
Maximum Grade ability 25°
Maximum Bucket digging force 91KN
Maximum Arm digging force 55KN
Hydraulic system pressure 32Mpa
Machine weight 14100kg
Fuel tank 252L
Hydraulic oil tank 160L
Engine oil capacity 11L
MACHINE SIZE
Overall dimension (L*W*H) 7520mm*2570mm*3425mm
Height of cabin 3015mm
Wheel base/Tread 2600mm/1944mm
Minimum Ground clearance 350mm
Swing radius at tail 2332mm
WORKING RANGE
Maximum Digging height 8930mm
Maximum Dumping height 6520mm
Maximum Digging depth 4750mm
Maximum Vertical digging depth 4200mm
Maximum Digging radius 8000mm
Minimum swing radius 2445mm
Maximum lifting height of dozer blade 400mm
Maximum cutting depth of dozer blade 100mm





PRODUCT DETAILS
4 Cylinder Compact Mini Excavator Electric Hydraulic Excavator With Isuzu Engine 0
4 Cylinder Compact Mini Excavator Electric Hydraulic Excavator With Isuzu Engine 1

OPTIONAL ATTACHMENTS
4 Cylinder Compact Mini Excavator Electric Hydraulic Excavator With Isuzu Engine 2

PACKING & SHIPPMENT
4 Cylinder Compact Mini Excavator Electric Hydraulic Excavator With Isuzu Engine 3

COMPANY PROFILE
4 Cylinder Compact Mini Excavator Electric Hydraulic Excavator With Isuzu Engine 4


FAQ
1. Are you manufacturer?

Yes, we are a manufacturer located in jiangsu porvince which is in the manufacturing center of construction machinery.

2. What kind terms of payment can be accepted?

Normally we can work on T/T or L/C term.

3. What about the delivery time?

7-30 days after receiving the deposit.

4. what about the warranty time?

12 months after shipment or 2000 working hours
